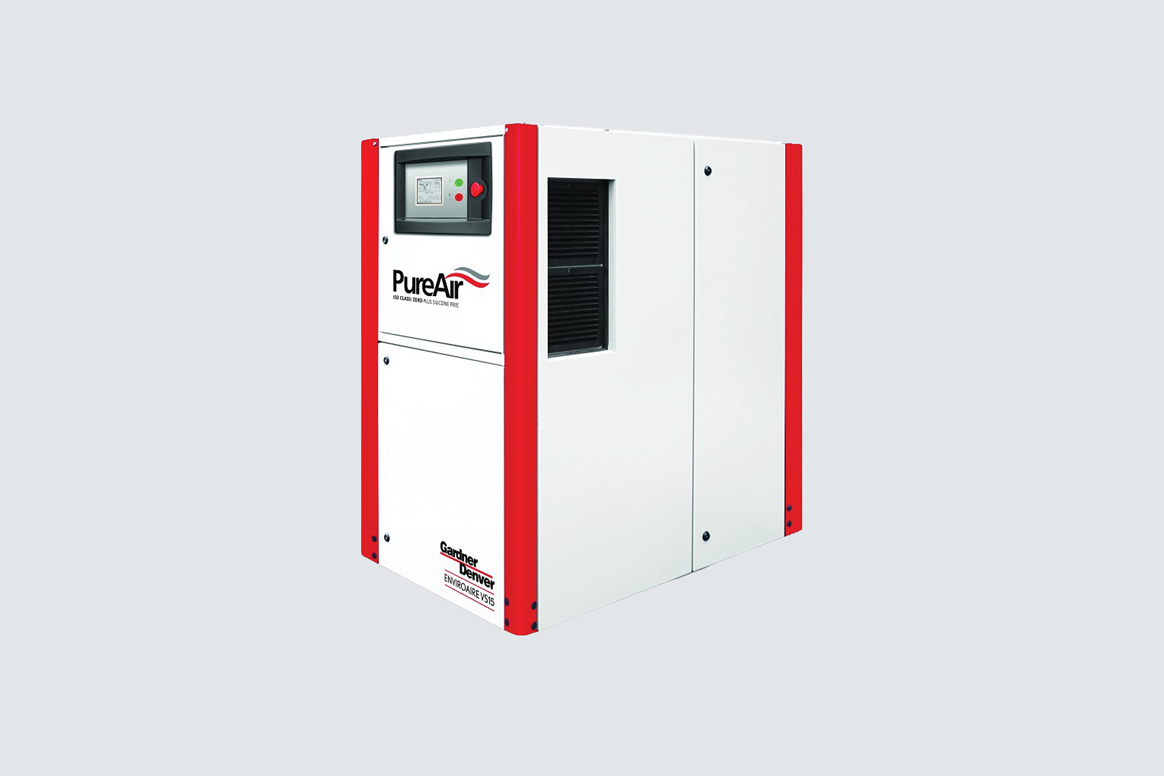

Designed for applications requiring absolute air purity, this range delivers clean, high-efficiency performance. Single and two-stage systems, energy-saving technologies, and integrated controls ensure consistent output, reduced operating costs, and dependable operation in critical environments.
Flow Rate (m³/min)
0.34m³/min–3.37m³/min
(Variable speed)
1.80m³/min–5.86m³/min
(Fixed Speed)
@ 5–10 bar
Pressure (bar g)
5 – 10 bar (fixed & VS)
Motor Power (kW)
15 / 22 / 37 kW
Key Features & Options
• Single-stage direct drive
• Water injection sealing
• Fixed & VS available
• iConn inside
• No oil disposal needed
• PureCare warranty
• Low rotational speed
Air Purity
ISO Class Zero
PureAir certified
Silicone free
(water injection)
iConn & Connectivity
GD Pilot TS with iConn and Base Load Select
Warranty
Protect 10
• Up to 6 yrs / 44,000 hrs (whole package)
• Up to 10 yrs / 44,000 hrs (airend)

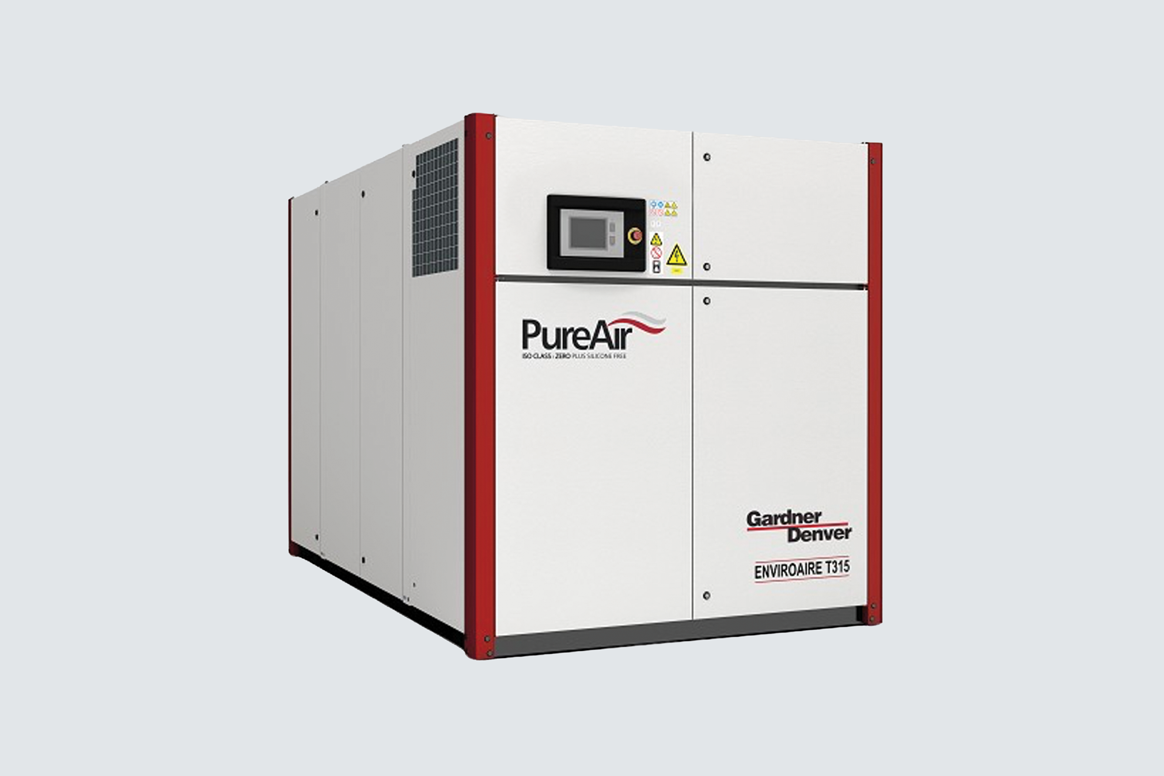

Flow Rate (m³/min)
14.6m³/min – 52.9m³/min
@ 4–10.7 bar
Pressure (bar g)
4 – 10.7 bar
Motor Power (kW)
90 / 110 / 132 / 160 / 200 / 250 / 315 kW
Key Features & Options
• UltraCoat™ rotors (GD)
• IE5 motors (TVS 90–160kW)
• Fixed (T) + VS (TVS)
• Heat recovery option
• iConn inside
• PureCare warranty
• Up to 35% energy saving
• Up to 46°C ambient
Air Purity
ISO Class Zero
PureAir certified
Silicone free
iConn & Connectivity
Governor 10
Warranty
Protect 10
• Up to 6 yrs / 44,000 hrs (whole package)
• Up to 10 yrs / 44,000 hrs (airend)

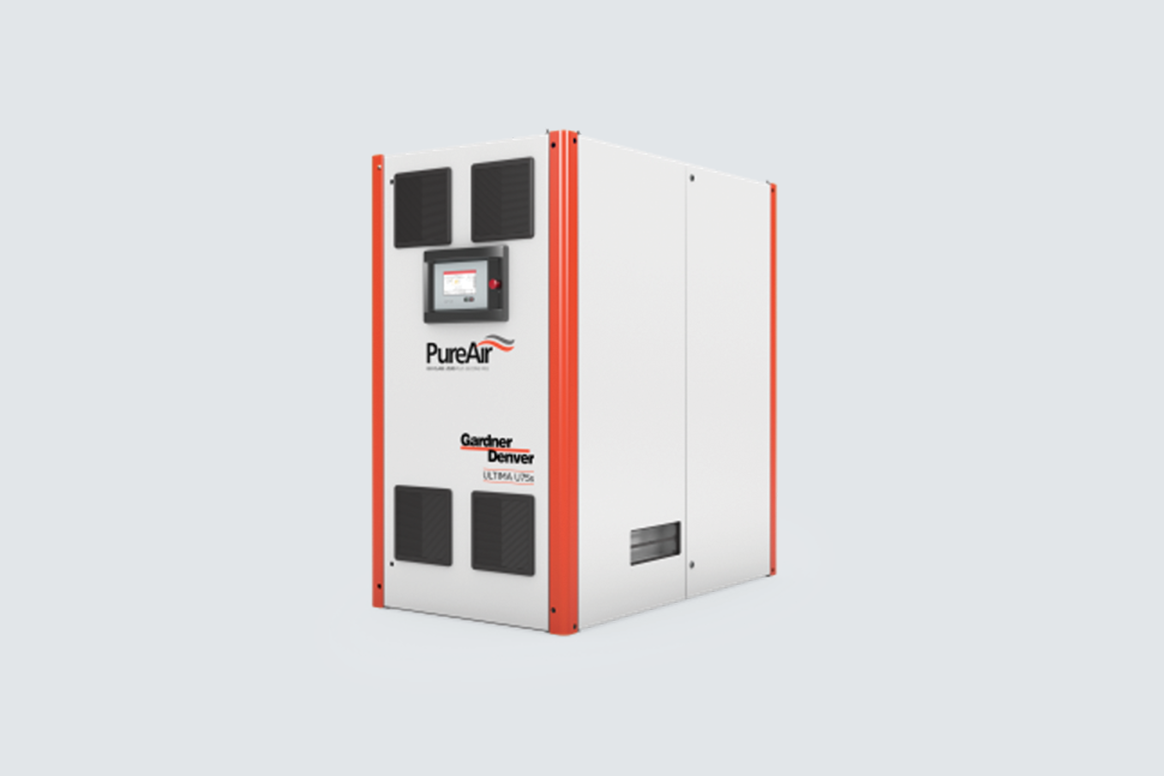

Flow Rate (m³/min)
6.7m³/min–24m³/min
@ 4-10bar
Pressure (bar g)
4 – 10 bar
Motor Power (kW)
75 / 90 / 110 / 132 / 160 kW
Key Features & Options
• Two independent PM motors
• No gearbox required
• Heat recovery to 90°C
• Up to 13% energy saving
• 45% less idle energy
• Subfreezing/drum/HOC dryer
• iConn + Ecoplant
• Power upgrade option
Air Purity
ISO Class Zero
PureAir certified
Silicone free
iConn & Connectivity
Delcos XL SE7 with iConn and Base Load Select
Warranty
Protect 10
• Up to 6 yrs / 44,000 hrs (whole package)
• Up to 10 yrs / 44,000 hrs (airend)

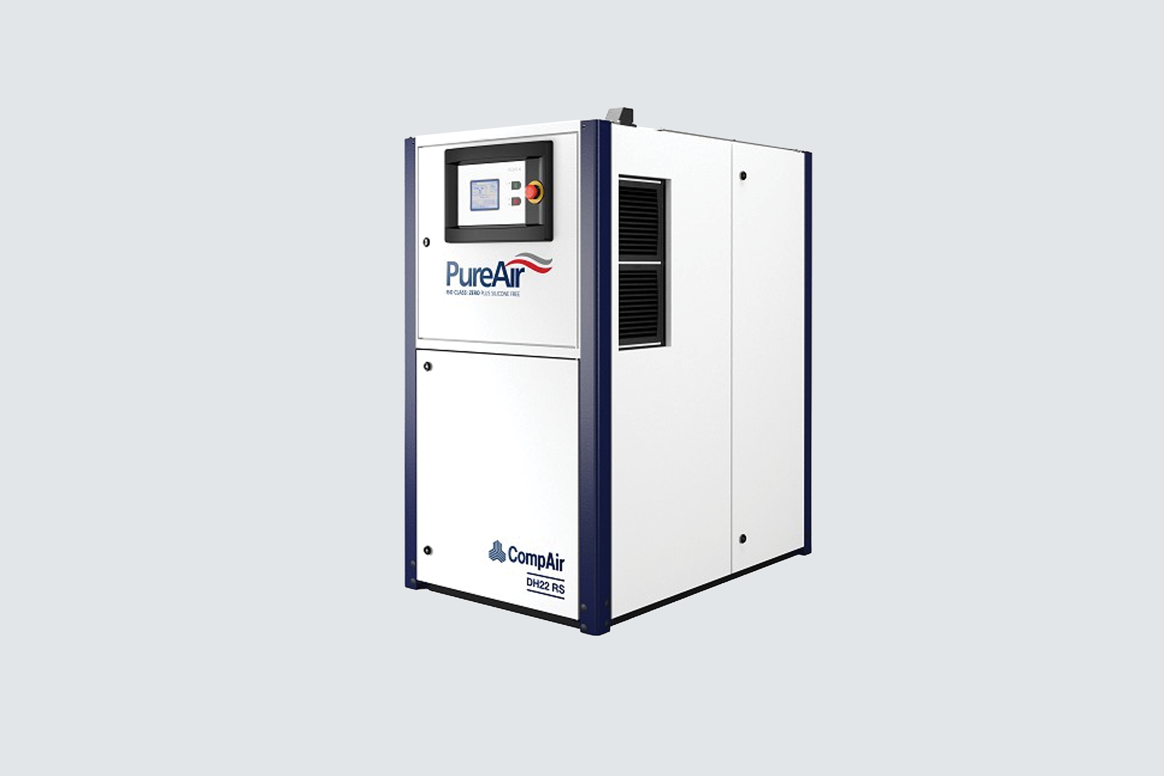

Flow Rate (m³/min)
1.80m³/min –5.86m³/min
(Fixed)
0.32m³/min–6.87m³/min
Pressure (bar g)
5 – 10 bar g
(fixed & RS)
Motor Power (kW)
15 / 22 / 37 kW
(fixed & RS)
Key Features & Options
• 36,000 hr element life
• Single-stage direct drive
• Fixed & RS available
• iConn inside
• No oil disposal
• Cooler operation
• Silenced enclosure
Air Purity
ISO Class Zero
PureAir certified
Silicone free
(water injection)
iConn & Connectivity
Delcos XL with iConn and Base Load Select
Warranty
ADVANCE 10
• Up to 6 yrs / 44,000 hrs (whole package)
• Up to 10 yrs / 44,000 hrs (airend)

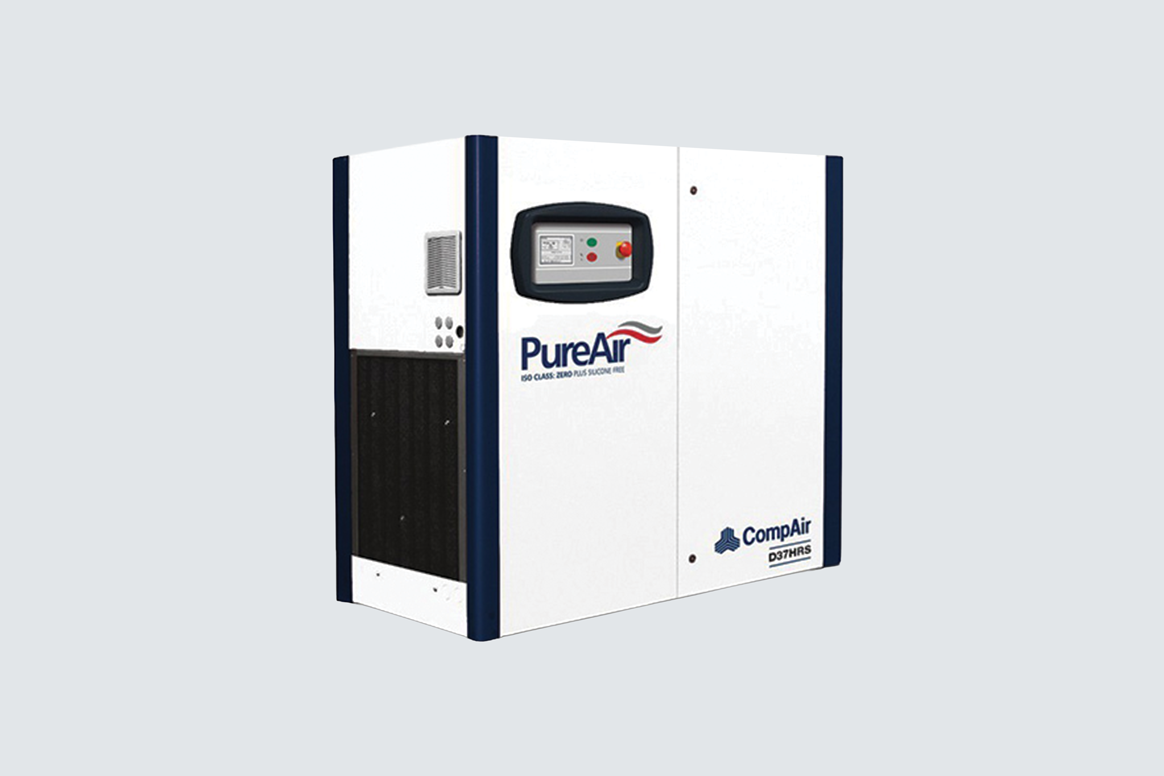

Flow Rate (m³/min)
5.1–12.7m³/min
@ 7–10 bar
Pressure (bar g)
7 – 10 bar
(D37–D75s fixed)
8.5 bar (RS)
Motor Power (kW)
37 / 45 / 55 / 75 kW
(fixed & RS)
Key Features & Options
• UltraCoat™ rotors
• HPM motors (RS)
• HOC dryer option
• ERS heat recovery
• iConn inside
• IP65 electrics
• 8,000 hr coolant
• Stainless 2nd stage
Air Purity
ISO Class Zero
PureAir certified
Silicone free
iConn & Connectivity
Delcos XL with iConn and Base Load Select
Warranty
ADVANCE 10
• Up to 6 yrs / 44,000 hrs (whole package)
• Up to 10 yrs / 44,000 hrs (airend)

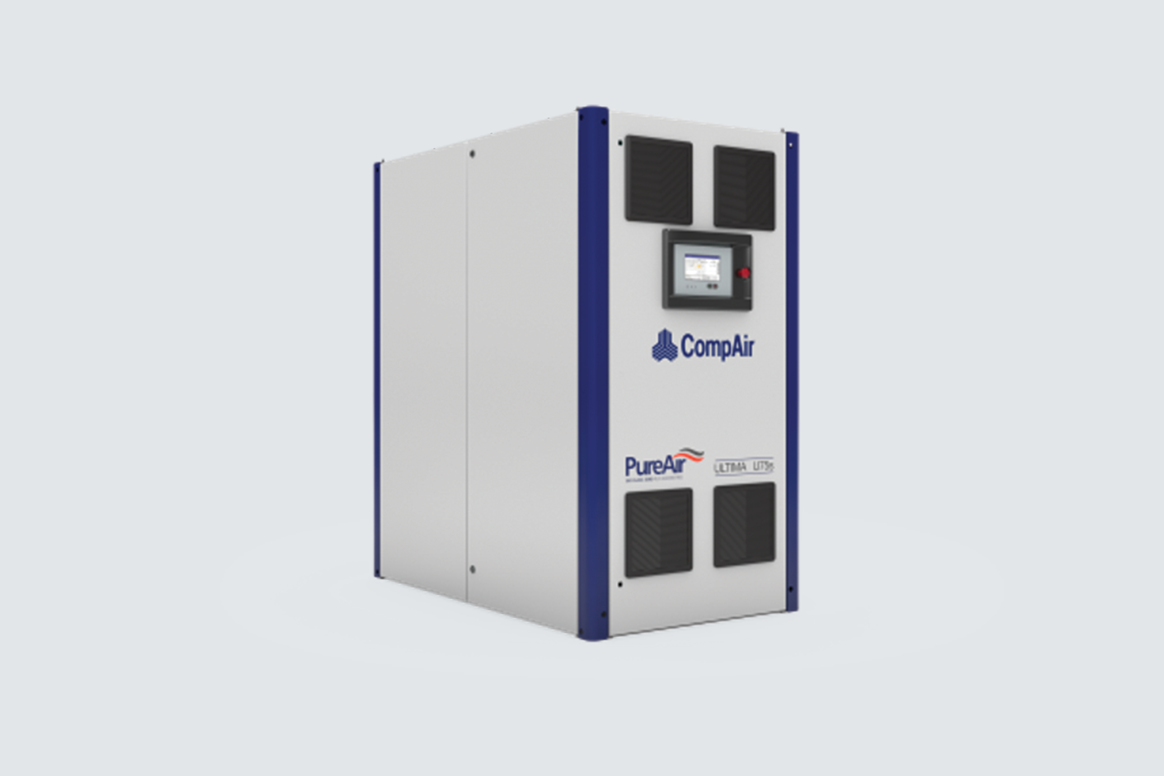

Flow Rate (m³/min)
6.7m³/min- 23.9m³/min
@ 8 bar g (air-cooled)
Pressure (bar g)
4 – 10 bar
Motor Power (kW)
75 / 90 / 110 / 132 / 160 kW
Key Features & Options
• Two independent PM motors
• No gearbox required
• Heat recovery to 90°C
• Up to 13% energy saving
• 45% less idle energy
• Subfreezing/drum/HOC dryer
• iConn + Ecoplant
• Power upgrade option
Air Purity
ISO Class Zero
PureAir certified
Silicone free
iConn & Connectivity
Delcos XL SE7 with iConn and Base Load Select
Warranty
ADVANCE 10
• Up to 6 yrs / 44,000 hrs (whole package)
• Up to 10 yrs / 44,000 hrs (airend)

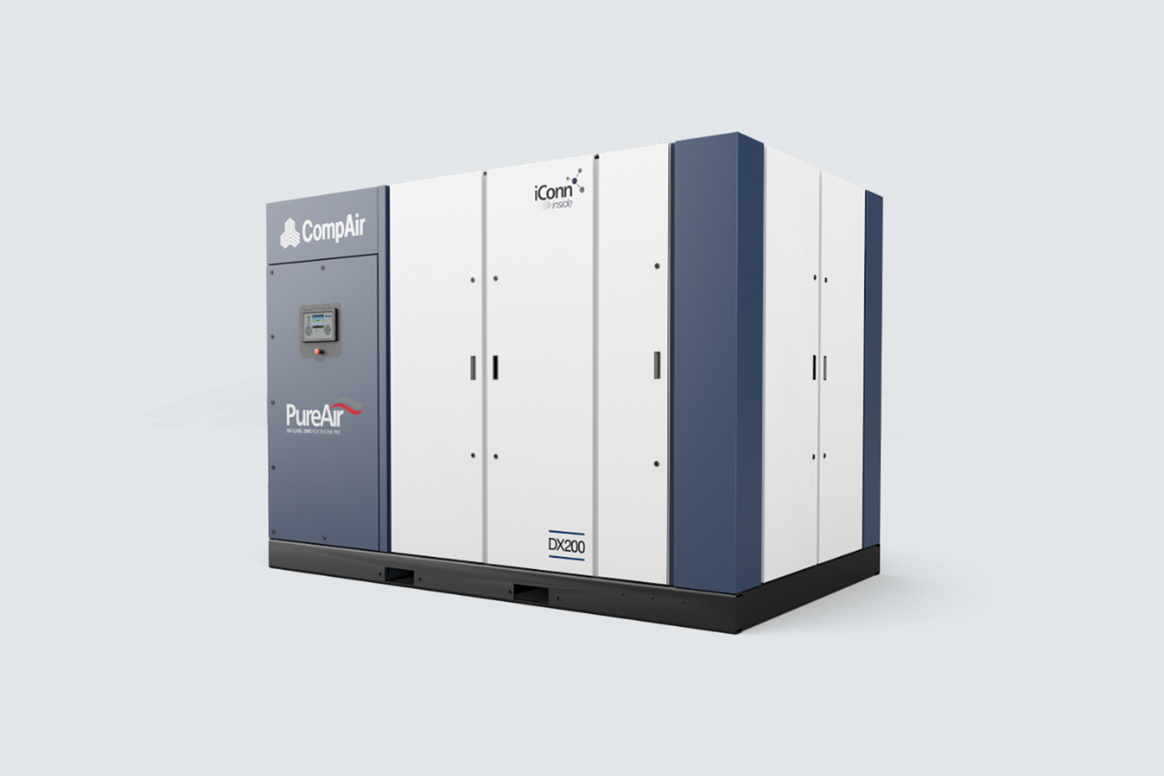

Flow Rate (m³/min)
DX200: 31.8m³/min– 52.8 m³/min
@ 7–10 bar
RS: 11.6m³/min–51.2 m³/min
Pressure (bar g)
7 – 10 bar g
(fixed)
10 bar g (RS)
Motor Power (kW)
200 / 250 / 315 / 355 kW
(fixed & RS)
Key Features & Options
• UltraCoat™ rotors
• IE5 motors (RS 90–160kW)
• IE4 motors (200–355kW RS)
• Heat recovery option
• iConn inside
• ASSURE service
• Up to 46°C ambient
Air Purity
ISO Class Zero
PureAir certified
Silicone free
iConn & Connectivity
iConn
Warranty
ADVANCE 10
• Up to 6 yrs / 44,000 hrs (whole package)
• Up to 10 yrs / 44,000 hrs (airend)
Our expert team is here to support you at every stage, from system selection to installation and ongoing optimisation. With deep technical knowledge across air, cooling, and nitrogen solutions, we provide practical guidance tailored to your operation, helping you improve performance, reduce costs, and ensure long-term reliability.
