Proven rotary vane technology delivers dependable, low-noise performance for workshop and industrial use. With minimal moving parts, integrated controls, and flexible configurations, this range ensures consistent air quality, strong efficiency, and long service life.
Technology:
Rotary vane
(oil-lubricated)
Open style
Fixed speed
DOL starter
Base or receiver
mounted
Made in Britain
Flow Rate (m³/min) [ISO 1217]:
0.12m³/min-1.04m³/min
Pressure (bar g)
10 bar (fixed pressure)
Motor Power & Type
1.1 / 2.2 / 4.0 kW
Key Features & Options
• Open style design
• Clip-on panel option (reduces noise to 62 dB(A))

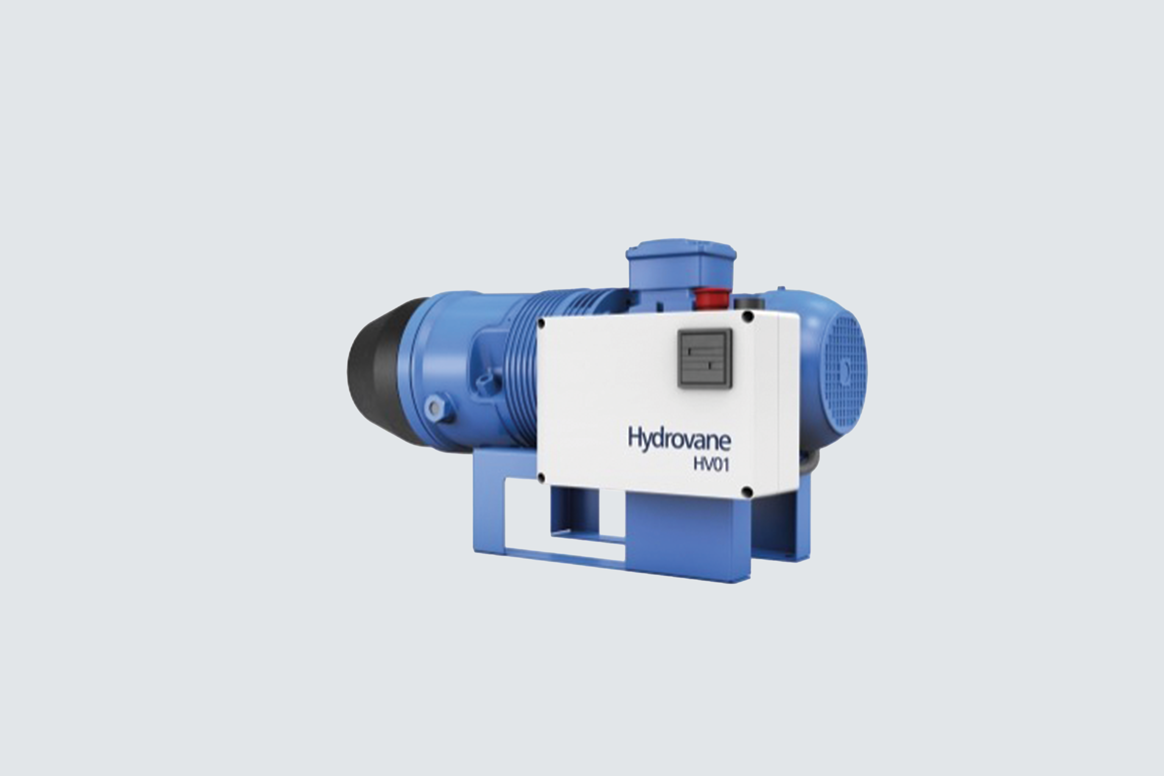

• HV01/02: 1Ph or 3Ph supply
• Base or receiver mounted options
• Membrane dryer package (ATK)
• Integral aftercooler
• Low operating temp
• ADVANCE 10 warranty
Sustainability & Energy Saving
• Single moving part = minimal wear
• Low rotational speed = long life
• 100,000+ hour airend life
• Low operating temperatures
• Integral aftercooler reduces downstream treatment needs
Warranty
ADVANCE 10
• Up to 6 yrs on compressor
• 10 yrs / 44,000 hrs on airend (whichever sooner)
• Free of charge
• T&Cs apply
Genuine OEM service kits
Free energy surveys available
Package Options
• Base mounted
• Receiver mounted (100L or 200L)
• Membrane dryer package (ATK) – HV01/02/04
• Hypac integrated package option
Technology:
Rotary vane
(oil-lubricated)
Enclosed
Fixed speed (HR_E)
or Regulated Speed
(HR07E RS)
SD starter
Flow Rate (m³/min) [ISO 1217]:
0.68m³/min- 0.97m³/min
Pressure (bar g):

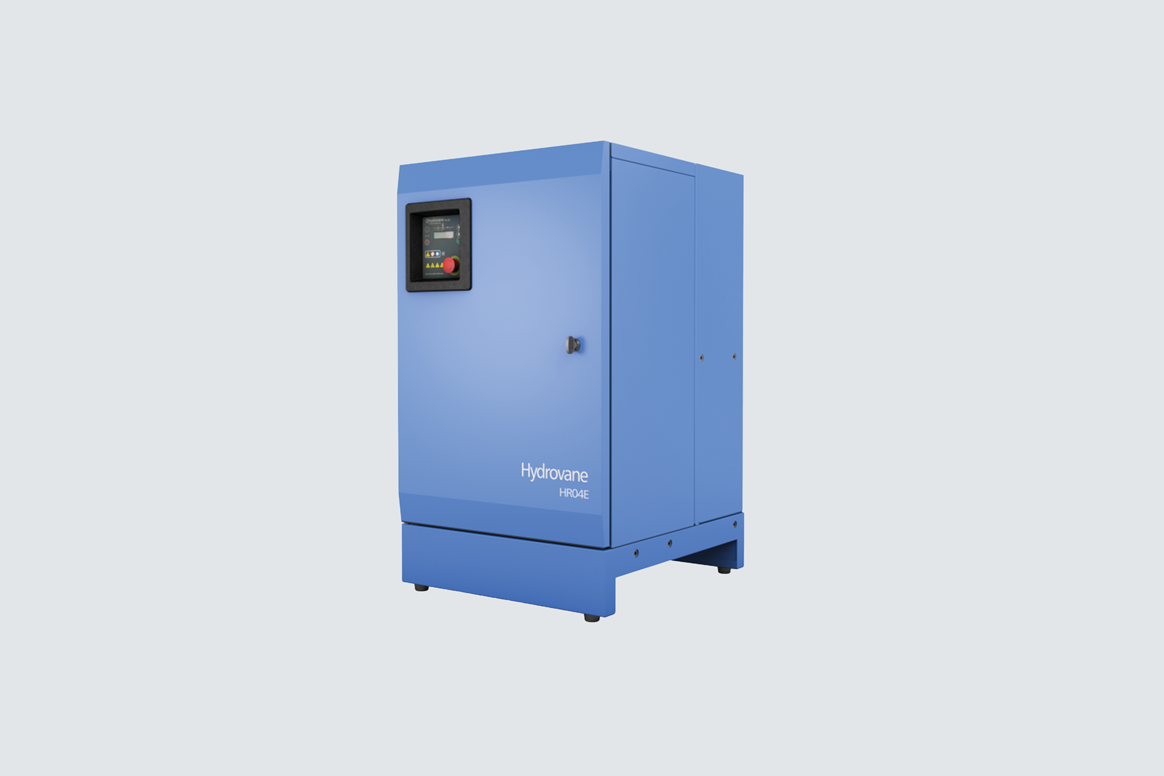

HR04E–HR07E: 7 & 10 bar HR07E RS: 8 & 10 bar
Motor Power (kW)
4.0 / 5.5 / 7.5 kW (HR07E RS)
Key Features & Options
• Enclosed design
• Regulated Speed option (HR07E RS) up to 50% energy saving
• Receiver-mounted option (PR range)
• Integral aftercooler
• Low operating temp
• High air quality
• Hydrovane Pro controller std.
• ADVANCE 10 warranty
Sustainability & Energy Saving
• Regulated Speed (RS): up to 50% energy savings
• Low rotational speed = long life
• Minimal moving parts
• Low operating temperatures
• Integral aftercooler
• Simple design = low maintenance
Warranty
ADVANCE 10
• Up to 6 yrs on compressor
• 10 yrs / 44,000 hrs on airend (whichever sooner)
• Free of charge
• T&Cs apply
Genuine OEM service kits
Free energy surveys available
Package Options
• Floor standing (HR_E range)
• Receiver mounted (HR05PR/HR07PR – 200L receiver)
• AERD integrated refrigerant dryer & receiver package (HR04–07 AERD)
Technology:
Rotary vane
(oil-lubricated)
Fully enclosed
Fixed speed (HV)
or Regulated Speed
(HV_RS)
SD starter
Flow Rate (m³/min) [ISO 1217]:
1.62m³/min- 3.53m³/min
Pressure (bar g)
Fixed: 8 & 10 bar RS: 6, 8 & 10 bar
Motor Power (kW)
11 / 15 / 18 / 22 kW (fixed & RS variants)
Key Features & Options

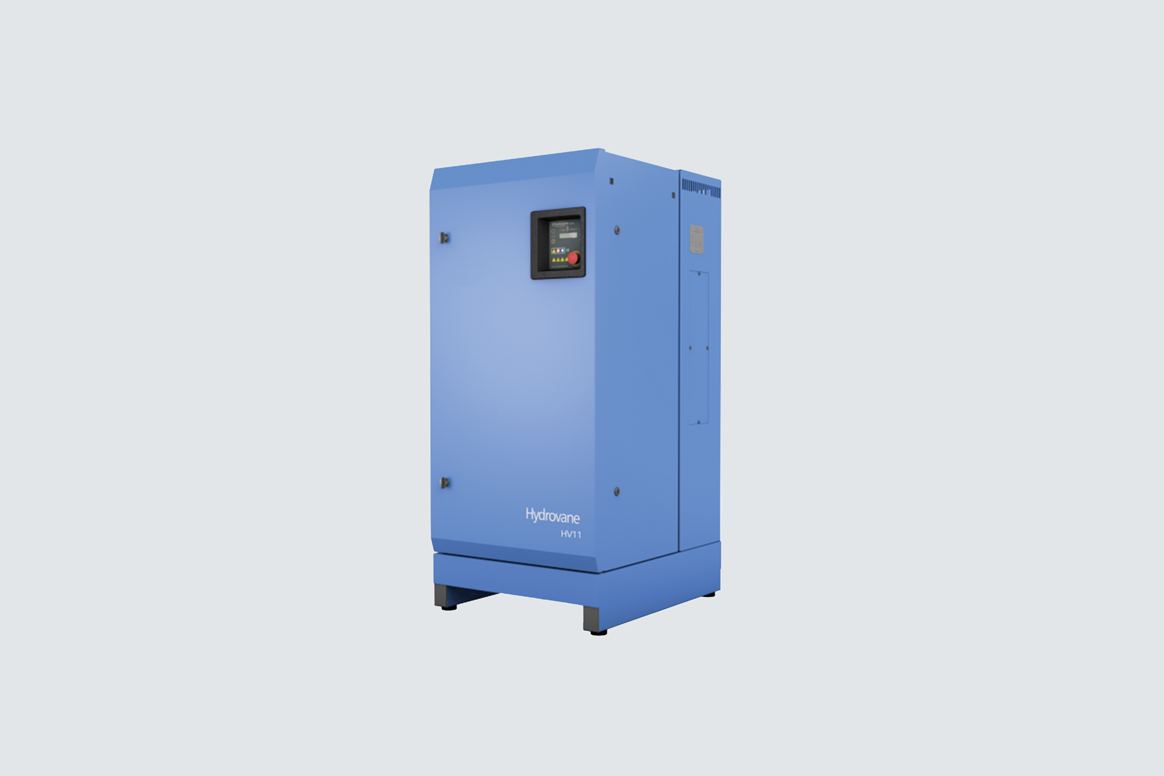

• iConn inside std. (HV11–22)
• Regulated Speed (RS) option — up to 50% energy saving
• AERD package (integrated refrig. dryer & receiver)
• Hydrovane Pro controller std.
• Low operating temp
• Integral aftercooler
• ADVANCE 10 warranty
Sustainability & Energy Saving
• Regulated Speed (RS): up to 50% energy savings
• iConn predictive maintenance
• Low rotational speed = long life
• 100,000+ hour airend life
• AERD integrated dryer reduces energy waste
• Made in Britain
Warranty
ADVANCE 10
• Up to 6 yrs on compressor
• 10 yrs / 44,000 hrs on airend (whichever sooner)
• Free of charge
• T&Cs apply
Genuine OEM service kits
Free energy surveys available
Package Options
• Floor standing
• AERD integrated refrigerant dryer & receiver package (HV11–22 AERD)
• Hypac complete package option (receiver, dryer & filtration)
• RS variant available on all models
Note: All specifications taken from Hydrovane brochure data (055EN 05/25 CI). FAD measured in accordance with ISO 1217. Noise measured per ISO 2151 (±3 dB(A)). HV01/HV02 accept 240V 1Ph or 400V 3Ph supply. HR04E–HR07E and HV11–HV22 require 400V 3Ph. ADVANCE 10 warranty: up to 6 years on compressor / 10 years (44,000 hours) on airend — whichever is sooner. Subject to T&Cs. iConn Industry 4.0 monitoring is standard on HV11–HV22 models. Hypac and AERD integrated package options available across the range. Regulated Speed (RS) models available on HR07E RS and all HV11–HV22 models. Contact Team Air Power for full technical specifications and application-specific recommendations.
