Oil-Lubricated Rotary Screw Compressors

Designed to support applications from compact workshops to high-capacity operations, this range delivers reliable, energy-efficient performance. Fixed and variable speed technologies, advanced controllers, and integrated AirStation options provide precise control, reduced lifecycle costs, and scalable solutions.

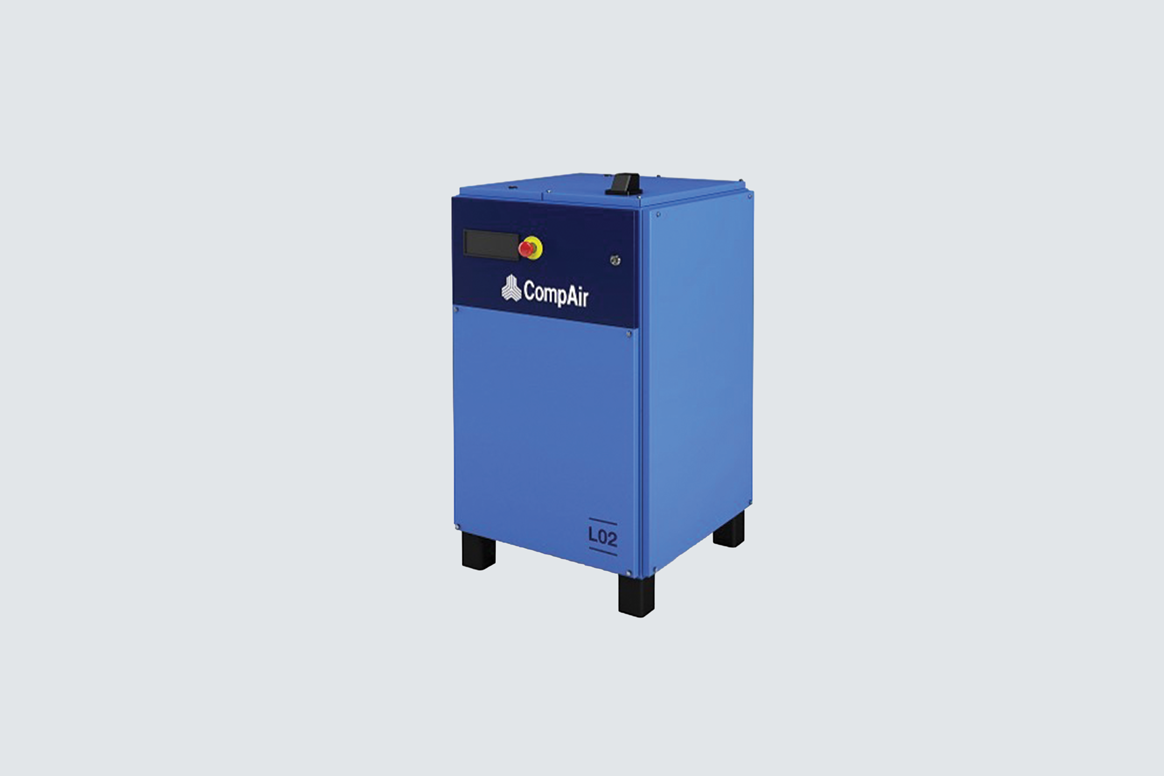

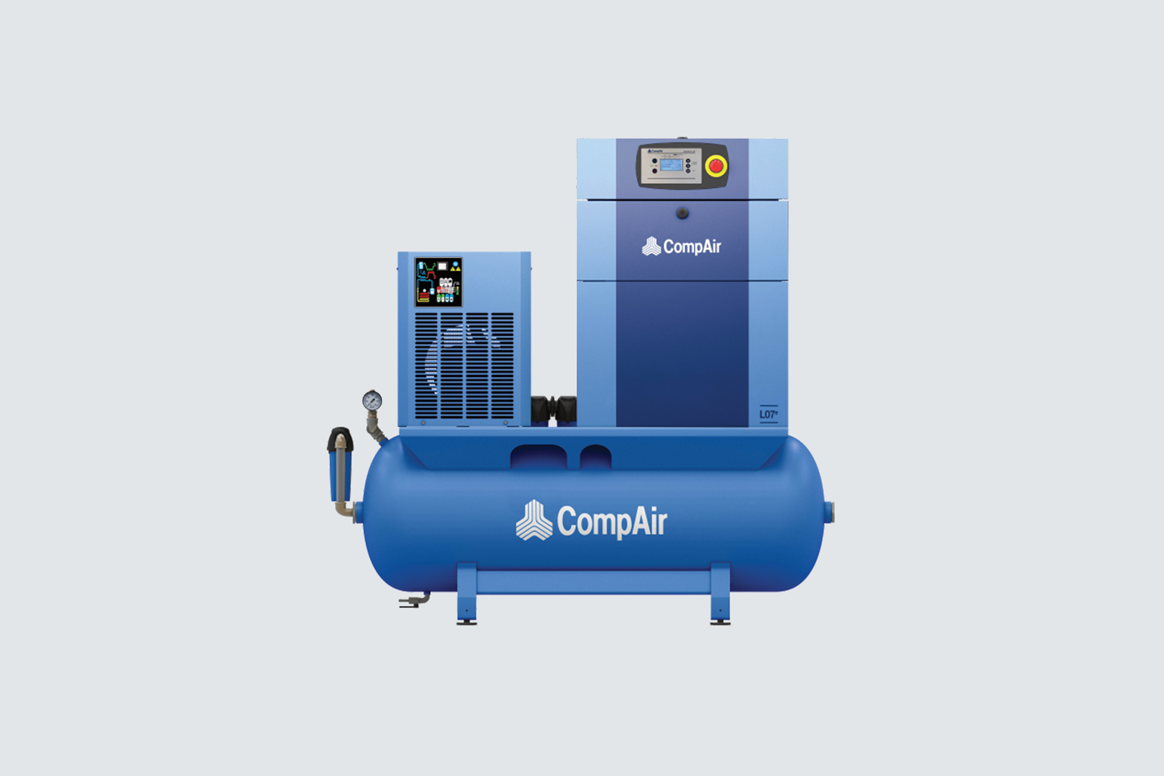

L02–L06 (2.2–7.5 kW)

Compact single-stage oil-lubricated screw. Ideal entry-level solution for workshops and small industrial applications. Also available as AirStation with integrated receiver and dryer. Fixed and variable speed. Market-leading energy efficiency.

Technology:
Single-stage
Oil-lubricated screw
Fixed + VS
Also: AirStation
(with receiver & dryer)

Flow Rate (m³/min)
0.18m³/min- 0.89m³/min
@ 10 bar

Pressure (bar g):
10 bar (fixed pressure)

Motor Power (kW)
2.2 / 3.0 / 4.0 / 7.5 kW

Sustainability Features
• Variable speed option
• Low idle energy
• Genuine parts for long life
• Ecoplant monitoring

Oil-Lubricated Rotary Screw Compressors

L07–L22 (7.5–22 kW)

Single-stage oil-lubricated screw for light to medium industrial use. Also available as AirStation with integrated receiver and dryer. Fixed and variable speed. Quiet, reliable and easy to maintain. 7 to 13 bar pressure range.

Technology:
Single-stage
oil-lubricated screw
Fixed + VS
Also: AirStation
(with receiver & dryer)

Flow Rate (m³/min)
0.45m³/min- 3.54m³/min
@ 7–13 bar

Pressure (bar g):
7 – 13 bar
(model dependent)

Motor Power (kW)
7.5 / 11 / 15 / 18.5 / 22 kW

Sustainability Features
• Variable speed option
• Low idle energy
• Genuine parts for long life
• Ecoplant monitoring

Oil-Lubricated Rotary Screw Compressors

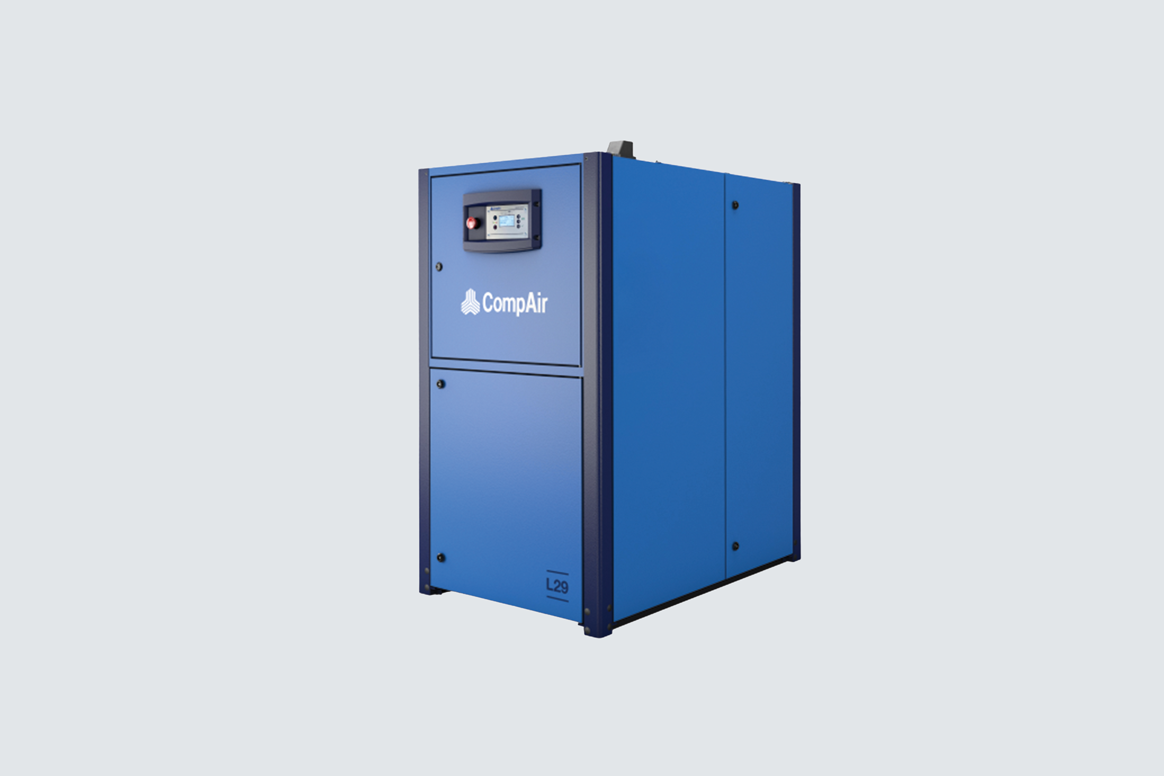

L23–L29 (22–30 kW)

Single-stage oil-lubricated screw, 22–30 kW. Robust design for continuous industrial use. Fixed and variable speed. 5 to 13 bar. Efficient oil separation and low maintenance. DELCOS controller with iConn connectivity.

Technology:
Single-stage
oil-lubricated screw
Fixed + VS

Flow Rate (m³/min)
L23: 1.03m³/min- 5.52m³/min
@ 5–13 bar

Pressure (bar g):
5 – 13 bar
(fixed & VS)

Motor Power (kW)
22 / 26 / 30 kW

Sustainability Features
• Variable speed drive
• Heat recovery option
• Leak detection
• Ecoplant monitoring
• Assure agreements

Oil-Lubricated Rotary Screw Compressors

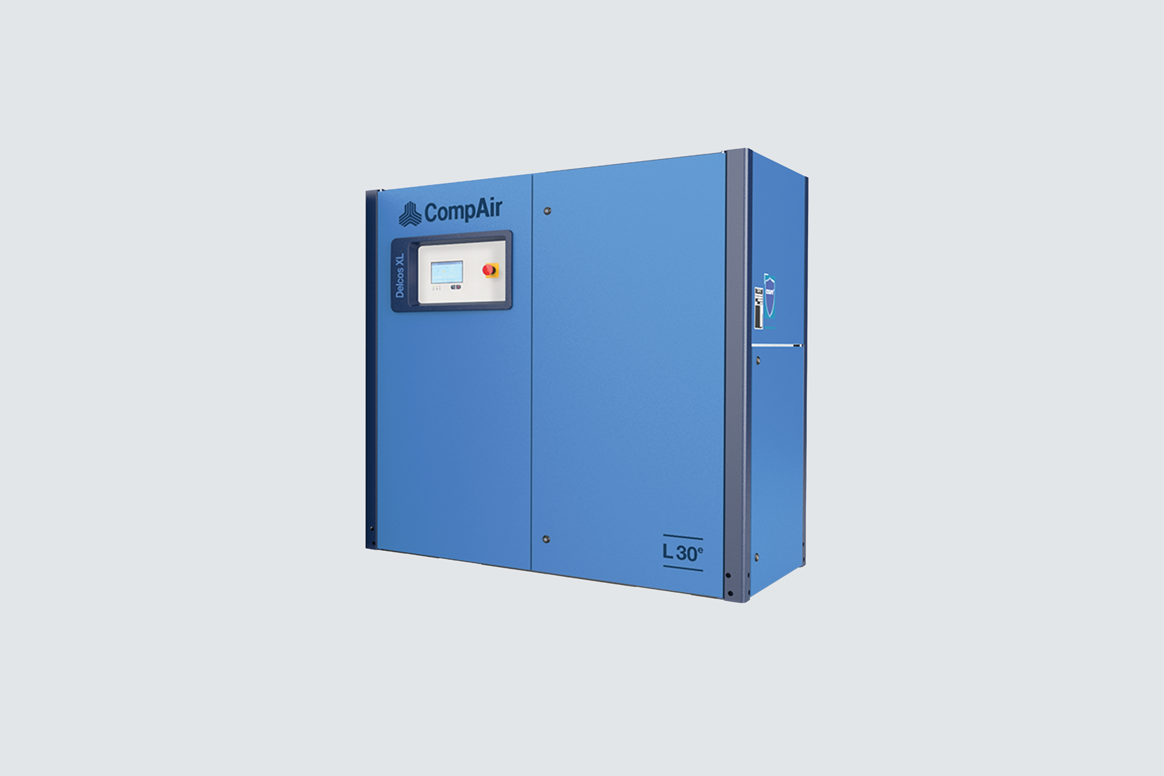

L30–L37 (30–37 kW)

Single-stage oil-lubricated screw, 30–37 kW. Heavy-duty industrial performance. Fixed and variable speed. 5 to 13 bar. Designed for demanding production environments. iConn and Ecoplant compatible.

Technology:
Single-stage
oil-lubricated screw
Fixed + VS

Flow Rate (m³/min)
1.33m³/min- 7.15m³/min
@ 5–13 bar

Pressure (bar g):
5 – 13 bar
(fixed & VS)

Motor Power (kW)
30 / 34 / 37 kW

Sustainability Features
• Variable speed drive
• Heat recovery option
• Leak detection
• Ecoplant monitoring
• Assure agreements

Oil-Lubricated Rotary Screw Compressors

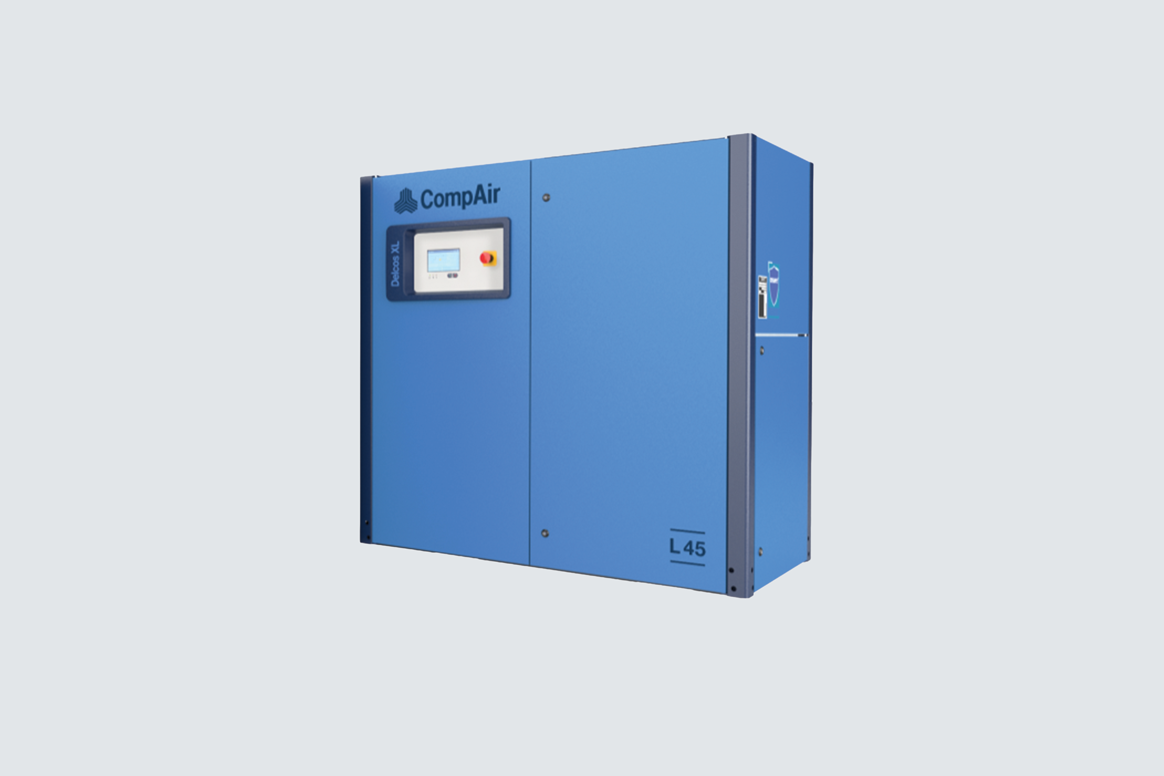

L45–L55 (45–55 kW)

Single- or two-stage oil-lubricated screw, 45–55 kW. FourCore technology available. Fixed and variable speed. 5 to 13 bar. Excellent efficiency across the full load range. Ideal for medium to large industrial applications. FourCore Technology Available (two-stage in single-stage footprint)

Technology:
Single- or two-stage
oil-lubricated screw
Fixed + VS
FourCore option

Flow Rate (m³/min)
1.60m³/min-11.1m³/min
@ 5–13 bar

Pressure (bar g):
5 – 13 bar
(fixed & VS)

Motor Power (kW)
45 / 50 / 55 kW

Sustainability Features
• FourCore = less material & consumables
• Variable speed drive
• Heat recovery option
• Ecoplant monitoring

Oil-Lubricated Rotary Screw Compressors

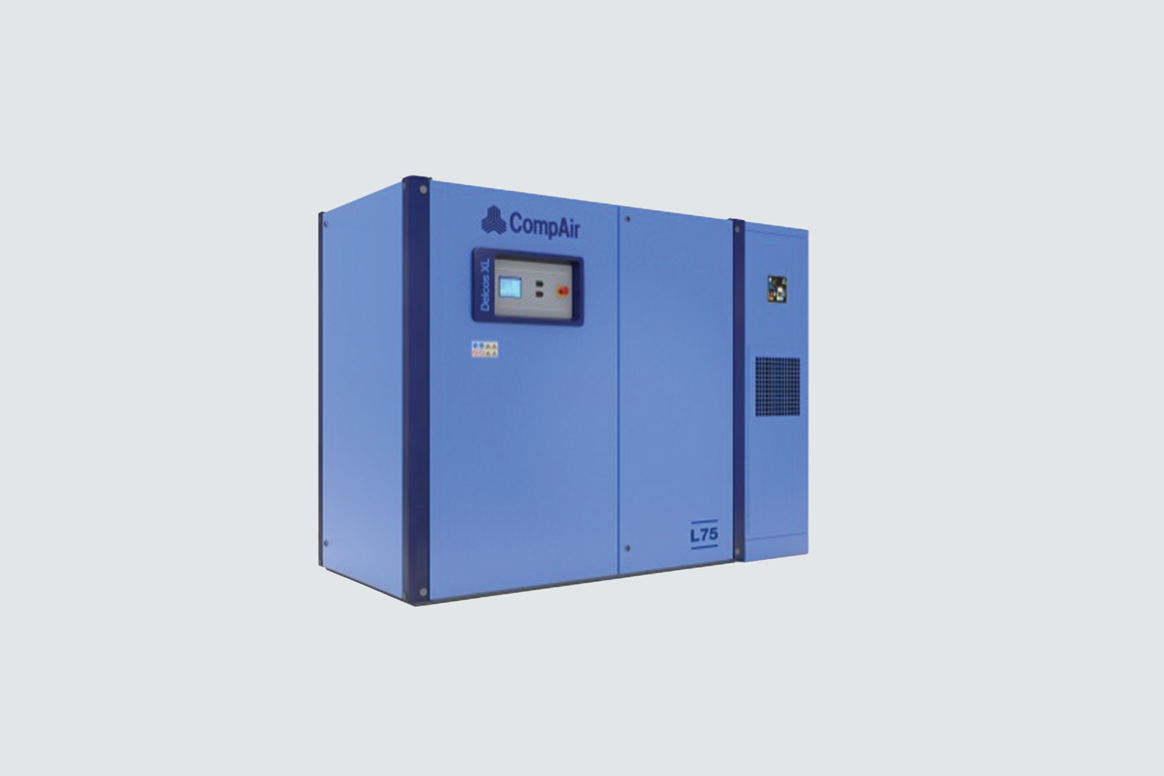

L75 (75 kW)

Single-stage oil-lubricated screw, 75 kW. High efficiency across wide flow range. Fixed and variable speed. 5 to 13 bar. 2.1 to 14.8 m³/min. Designed for continuous heavy-duty industrial duty with low lifecycle costs.

Technology:
Single-stage
oil-lubricated screw
Fixed + VS

Flow Rate (m³/min)
2.1m³/min–14.8m³/min
@ 5–13 bar

Pressure (bar g):
5 – 13 bar
(fixed & VS)

Motor Power (kW)
75 kW

Sustainability Features
• Variable speed drive
• Heat recovery option
• Leak detection
• Ecoplant monitoring
• Assure agreements

Oil-Lubricated Rotary Screw Compressors

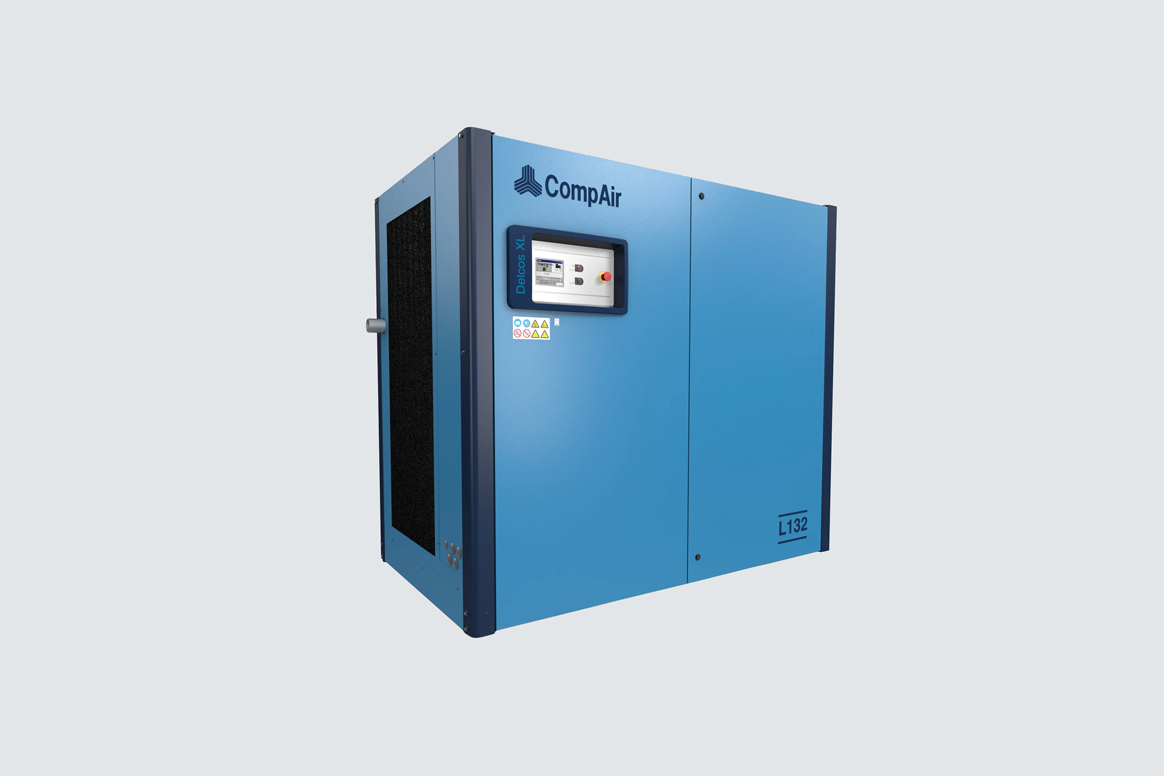

L90–L132 (90–132 kW)

Single- or two-stage oil-lubricated screw, 90–132 kW. Suitable for high-demand industrial environments. FourCore two-stage option for maximum efficiency. Fixed and variable speed. 5 to 13 bar. iConn and Ecoplant ready.

Technology:
Single- or two-stage
oil-lubricated screw
Fixed + VS
FourCore option

Flow Rate (m³/min)
5.1m³/min- 24.79m³/min
@ 5–13 bar

Pressure (bar g):
5 – 13 bar
(fixed & VS)

Motor Power (kW)
90 / 110 / 132 kW

Sustainability Features
• FourCore = less material & consumables
• Variable speed drive
• Heat recovery: 70–94%
• Ecoplant monitoring

Oil-Lubricated Rotary Screw Compressors

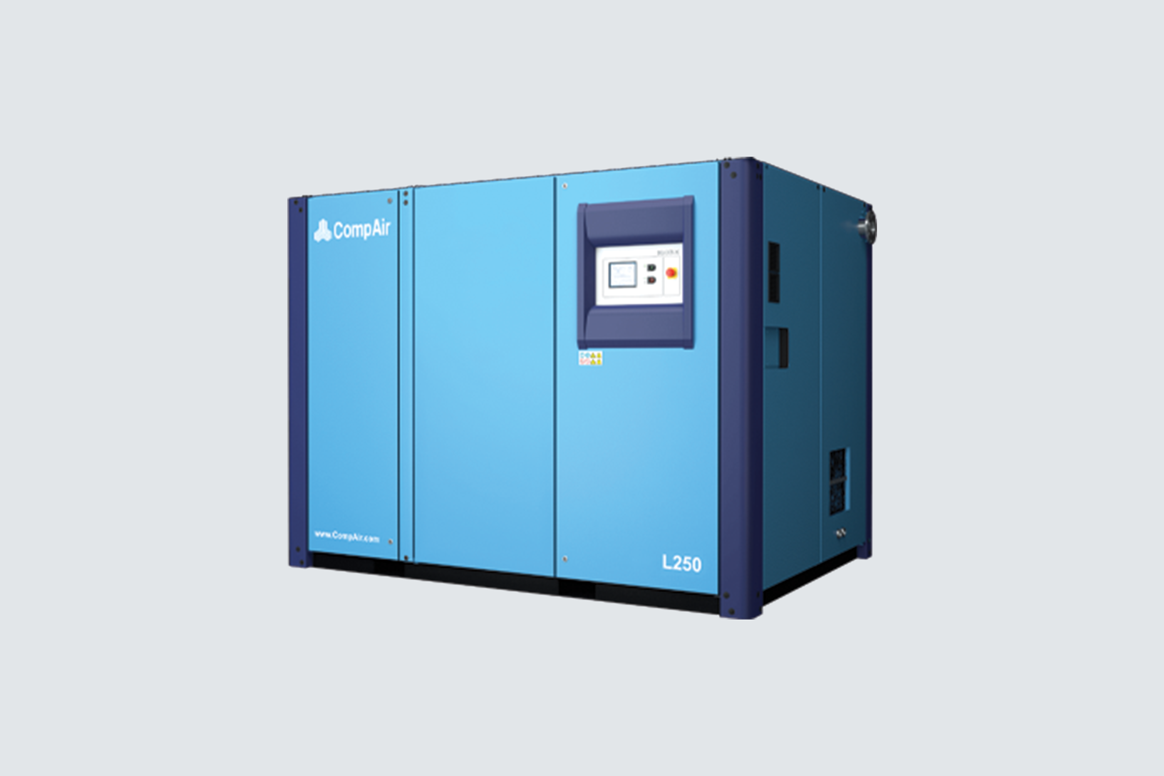

L160–L250 (160–250 kW)

Single- or two-stage oil-lubricated screw, 160–250 kW. FourCore advanced compression technology (two-stage, footprint of single-stage). Up to 22% less material vs conventional two-stage 200 kW. Up to 19% reduction in consumables. Fixed and variable speed.

Technology:
Single- or two-stage
oil-lubricated screw
Fixed + VS
FourCore technology

Flow Rate (m³/min)
5.83m³/min- 47.1m³/min
@ 5–13 bar

Pressure (bar g):
5 – 13 bar
(fixed & VS)

Motor Power (kW)
160 / 200 / 250 kW

Sustainability Features
• FourCore standard
• 22% less material
• 19% fewer consumables
• Variable speed drive
• Heat recovery: 70–94%
• Ecoplant monitoring

Note: All specifications are nominal values taken from CompAir Green Compressed Air brochure data (L02–L250 L-Series) and are subject to change without notice. FourCore advanced compression technology is available on selected two-stage models (L45–L55, L90–L132, L160–L250). AirStation configuration (integrated receiver and dryer) available on L02–L22 range. Flow rates shown at representative pressures — actual FAD varies by model and pressure. Contact Team Air Power for full technical specifications and application-specific recommendations.

Oil-Lubricated Rotary Screw Compressors

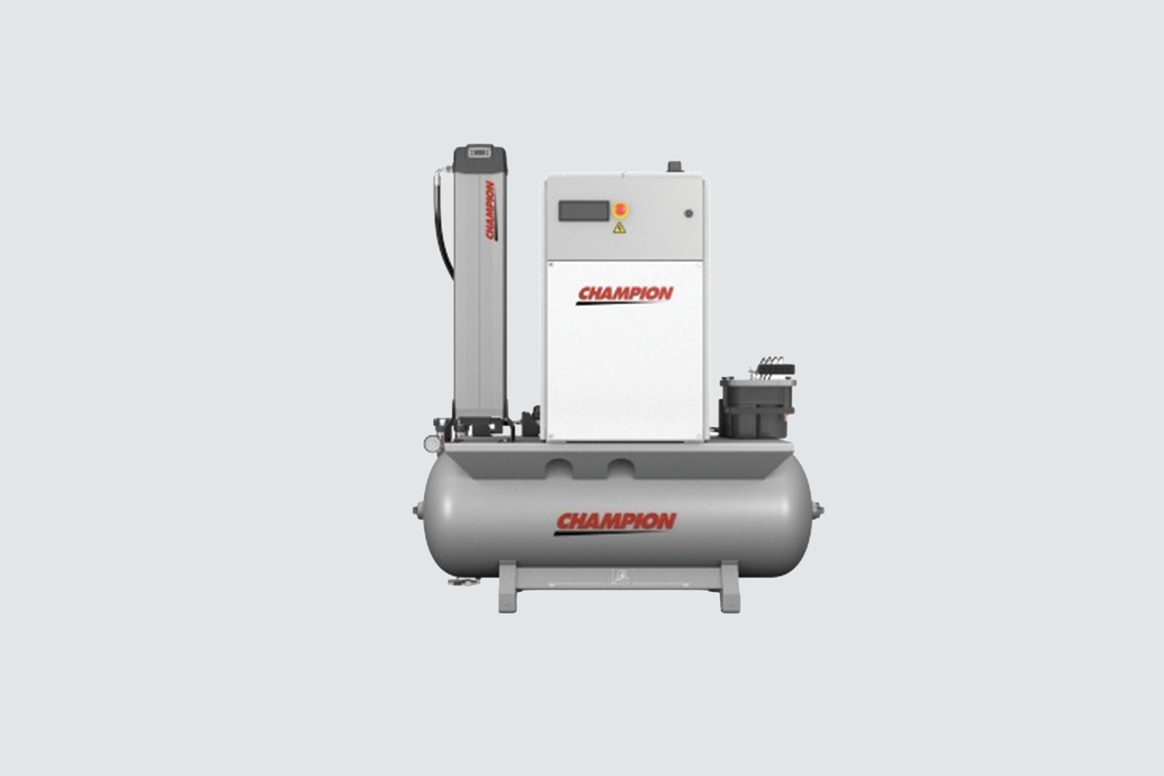

FM2–FM6 (2.2–7.5 kW)

Compact oil-lubricated rotary screw compressor (2.2–7.5 kW). Ideal for workshops, garages and small production lines. C-Pro 1.0+ controller. Available base-mounted, receiver-mounted (270/500L) or as complete airstation with dryer. Belt drive with auto-tensioning. 5-year extended warranty.

Flow Rate (m³/min)
FM2: 0.18 FM3: 0.35 FM4: 0.45 FM5: 0.66 FM6: 0.92 @ 10 bar

Technology:
Single-stage oil-lubricated screw Belt drive Fixed + VS Also: airstation (receiver + dryer)

Pressure (bar g):
10 bar (fixed pressure)

Motor Power (kW)
2.2 / 3.0 / 4.0 / 5.5 / 7.5 kW IE3

Drive Type
Belt drive (auto-tensioning)

Noise Level (dB(A))
63–70 dB(A) (model dependent)

Dimensions (L × W × H mm)
622 × 599 × 1,106 (base unit) 1,539 × 720 × 1,604 (270L tank) 1,885 × 720 × 1,700 (500L tank)

Weight (kg)
151–174 kg (base unit) 242–264 kg (270L tank) 314–359 kg (500L tank)

Controller
C-Pro 1.0+ • RS485 / Modbus • Integrated sequencer (2 compressors) • Auto restart • Password protection

Key Features & Options
• Airstation option (270 / 500L receiver + dryer) • C-Pro 1.0+ controller • Auto belt tensioning • Fixed + VS option • 5-year extended warranty • Food grade oil option • AD2000 separator vessel

Connectivity & Control
C-Pro 1.0+ controller RS485 / Modbus Integrated 2-unit sequencer iConn compatible (via gateway)

Sustainability Features
• Variable speed option • Low idle energy • Genuine Champion parts • Ecoplant compatible • 5-year warranty (reduces unplanned downtime)

Typical Applications
Workshops, garages, small manufacturing, light assembly, pneumatic tools, automotive servicing

Oil-Lubricated Rotary Screw Compressors

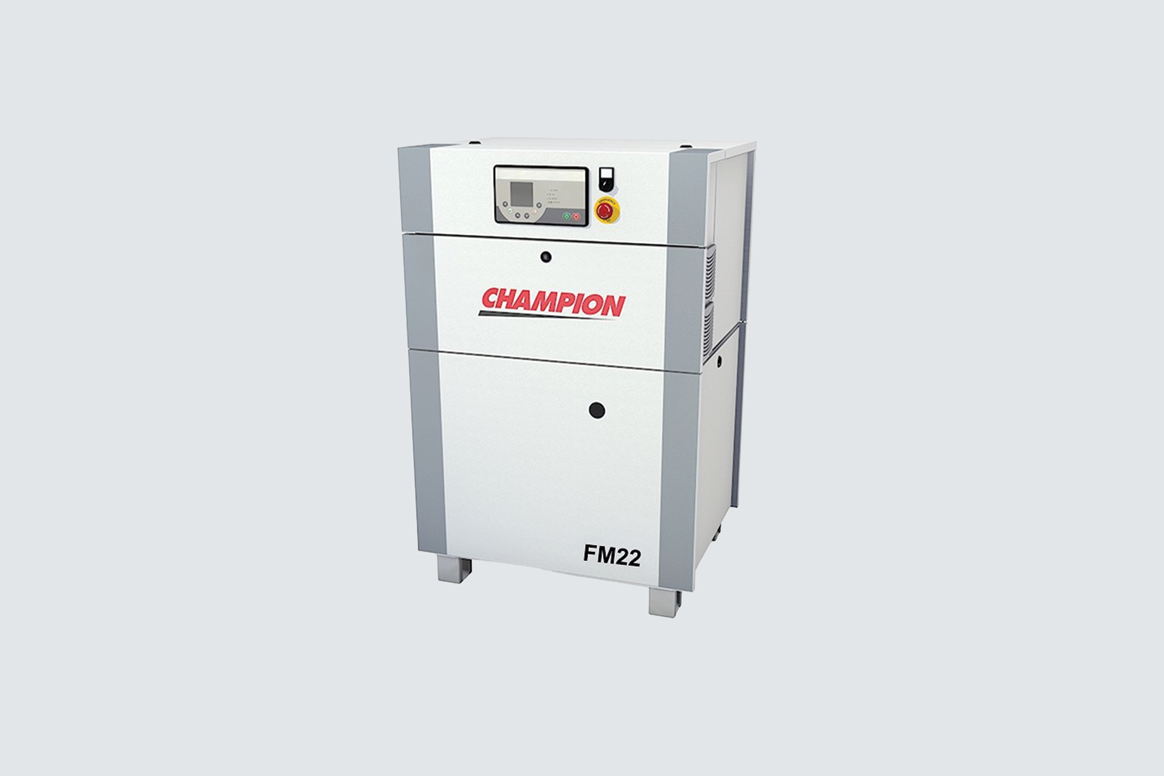

FM7–FM22+ (7.5–22 kW)

Compact single-stage oil-lubricated screw (7.5–22 kW). Belt drive with auto-tensioning. Fixed and variable speed (FM RS). C-Pro 2.0 controller. Available base-mounted, receiver-mounted (270/500L) or as complete package with dryer. Enduro airend (FM15–22). FM22+ and FM22+RS 'High Flow' models offer up to 10% increased FAD. 5-year extended warranty.

Flow Rate (m³/min)
FM7: 0.80–1.14 FM11: 1.14–1.59 FM15: 1.79–2.64 FM18: 2.38–3.15 FM22: 2.59–3.50 FM22+: 3.40–3.79 @ 7–13 bar

Technology:
Single-stage oil-lubricated screw Belt drive Fixed + VS (FM RS) Also: package (receiver + dryer) Enduro airend (FM15–22)

Pressure (bar g):
7 – 13 bar (fixed) 5 – 13 bar (variable speed)

Pressure (bar g):
10 bar (fixed pressure)

Motor Power (kW)
7.5 / 11 / 15 / 18.5 / 22 kW IE3

Drive Type
Belt drive (auto-tensioning) Enduro airend on FM15–22

Noise Level (dB(A))
63–70 dB(A) (model dependent)

Dimensions (L × W × H mm)
667 × 630 × 1,050 (FM7–FM11 base) 787 × 698 × 1,202 (FM15–FM22 base) 2,000 × 700 × 1,700 (500L tank versions)+C12:C13

Weight (kg)
667 × 630 × 1,050 (FM7–FM11 base) 787 × 698 × 1,202 (FM15–FM22 base) 2,000 × 700 × 1,700 (500L tank versions)+C12:C13

Controller
C-PRO 2.0 • Multi-language • Sequencer up to 8 units • Modbus standard • 15 fault records • iConn Industry 4.0 (optional)

Key Features & Options
• Package option (receiver + dryer) • C-PRO 2.0 controller • Enduro airend (FM15–22) • FM22+ High Flow (+10% FAD) • Fixed + VS (FM RS) • iConn Industry 4.0 option • 5-year extended warranty • Food grade oil option

Connectivity & Control
C-PRO 2.0 controller Modbus standard Sequences up to 8 units iConn Industry 4.0 (optional add-on) AIRINSITE monitoring

Sustainability Features
• Variable speed (FM RS) ≥25% energy savings • IES2-compliant drive • iConn predictive maintenance • Heat recovery option • AIRINSITE monitoring

Typical Applications
Light to medium manufacturing, garages, assembly lines, pneumatic tools, automotive, food processing

Oil-Lubricated Rotary Screw Compressors

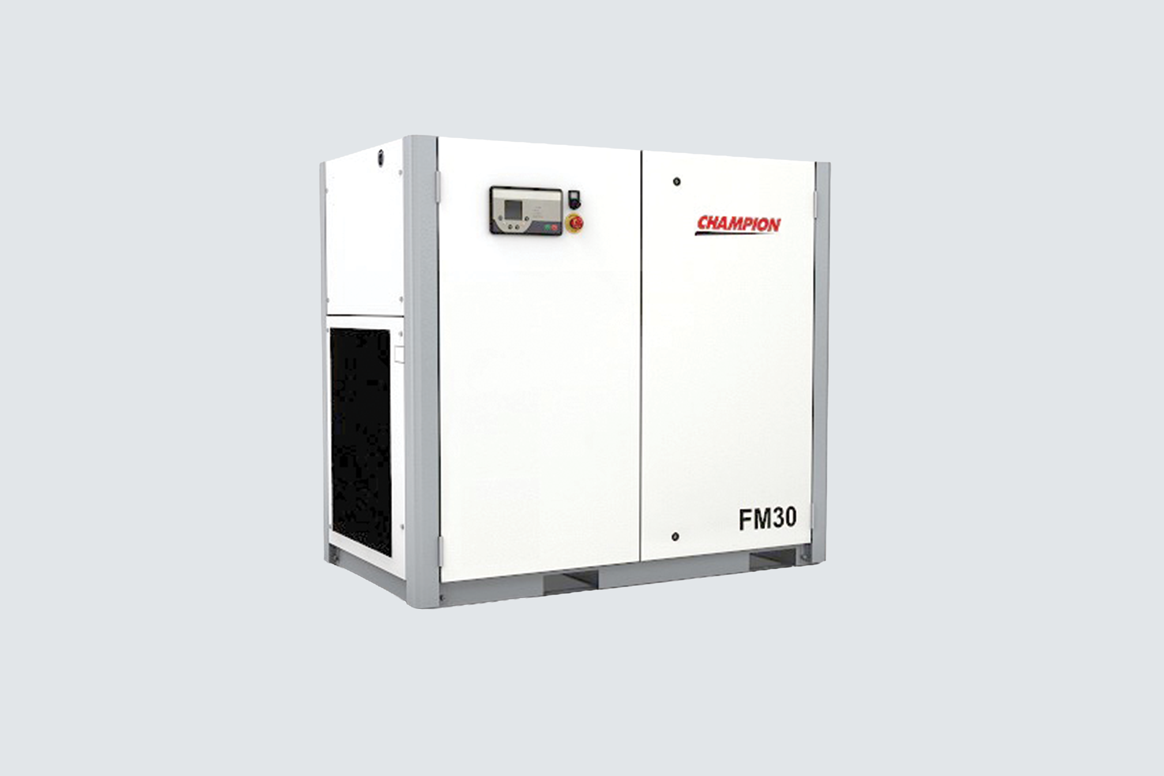

FM30–FM45 (30–45 kW)

New-generation highly efficient oil-lubricated screw (30–45 kW). Direct or gear drive (belt-free). C-PRO 2.0 controller. Fixed and variable speed. Premium in-house manufactured airend. Stainless steel tubing in pressure lines. iConn Industry 4.0 option. Optional heat recovery. 5-year extended warranty.

Flow Rate (m³/min)
FM30: 4.08–4.87 FM37: 5.05–6.40 FM45: 5.40–7.52 @ 8–13 bar RS: 1.19–7.84 @ 5–13 bar

Technology:
Single-stage oil-lubricated screw Direct/gear drive (belt-free) Fixed + VS (FM RS)

Pressure (bar g):
8 – 13 bar (fixed) 5 – 13 bar (variable speed)

Pressure (bar g):
10 bar (fixed pressure)

Motor Power (kW)
30 / 37 / 45 kW IE3

Drive Type
Direct drive or gear drive (belt-free FM30–75)

Noise Level (dB(A))
70–72 dB(A) (fixed) 70–71 dB(A) (variable speed @ 70% load)

Dimensions (L × W × H mm)
1,554 × 894 × 1,405 (all FM30–FM45)

Weight (kg)
700–900 kg (FM30–FM45)

Controller
C-PRO 2.0 • Multi-language • Sequencer up to 8 units • Modbus standard • 15 fault records • iConn Industry 4.0 (optional)

Connectivity & Control
C-PRO 2.0 controller Modbus standard Sequences up to 8 units iConn Industry 4.0 (optional add-on) AIRINSITE monitoring

Sustainability Features
• Variable speed (FM RS) ≥25% energy savings • IES2-compliant drive • Heat recovery (HRC) • iConn predictive maintenance • Stainless steel pipework (reduces leak risk)

Typical Applications
General to medium manufacturing, automotive, metal fabrication, plastics, engineering

Oil-Lubricated Rotary Screw Compressors

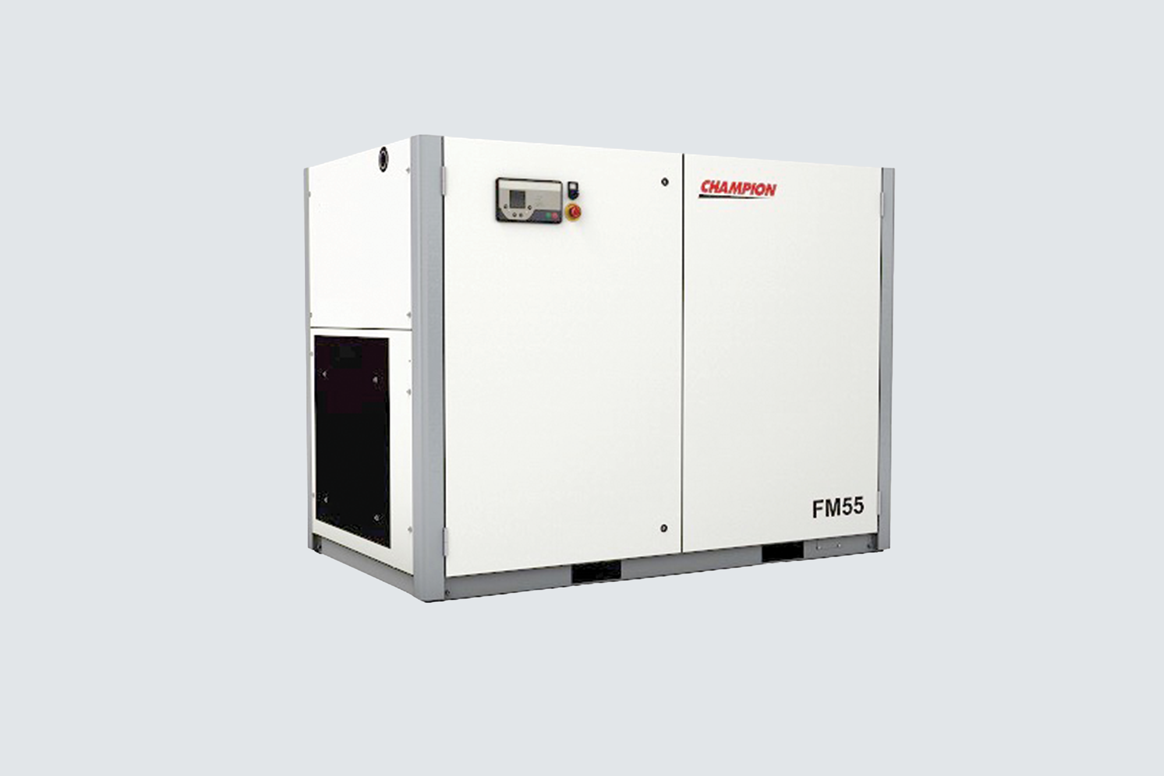

FM55–FM75 (55–75 kW)

High efficiency single-stage oil-lubricated screw (55–75 kW). Direct drive. Fixed and variable speed. C-PRO 2.0 controller with iConn Industry 4.0 option. IE3 TEFC motors. Optional heat recovery (HRC). Designed for continuous heavy-duty industrial use with low lifecycle costs. 5-year extended warranty.

Flow Rate (m³/min)
FM55: 7.90–10.55 FM75: 8.91–12.15 @ 8–13 bar RS: 2.24–13.57 @ 5–13 bar

Technology:
Single-stage oil-lubricated screw Direct drive Fixed + VS (FM RS)

Pressure (bar g):
8 – 13 bar (fixed) 5 – 13 bar (variable speed)

Pressure (bar g):
10 bar (fixed pressure)

Motor Power (kW)
55 / 75 kW IE3

Drive Type
Direct drive (belt-free)

Noise Level (dB(A))
73–74 dB(A) (fixed) 71–74 dB(A) (variable speed @ 70% load)

Dimensions (L × W × H mm)
2,004 × 1,179 × 1,505 (all FM55–FM75)

Weight (kg)
1,150–1,280 kg (FM55–FM75)

Controller
C-PRO 2.0 • Multi-language • Sequencer up to 8 units • Modbus standard • iConn Industry 4.0 (optional)

Key Features & Options
• Direct drive (belt-free) • C-PRO 2.0 controller • iConn Industry 4.0 option • Heat recovery (HRC) option • Fixed + VS (FM RS) • IE3 TEFC motors • Up to 46°C ambient • 5-year extended warranty

Connectivity & Control
C-PRO 2.0 controller Modbus standard Sequences up to 8 units iConn Industry 4.0 (optional add-on) AIRINSITE monitoring

Sustainability Features
• Variable speed (FM RS) ≥25% energy savings • IES2-compliant drive • Heat recovery (HRC) • iConn predictive maintenance • IE3 TEFC motors

Typical Applications
Heavy industrial, automotive, large manufacturing, civil engineering, construction

Oil-Lubricated Rotary Screw Compressors

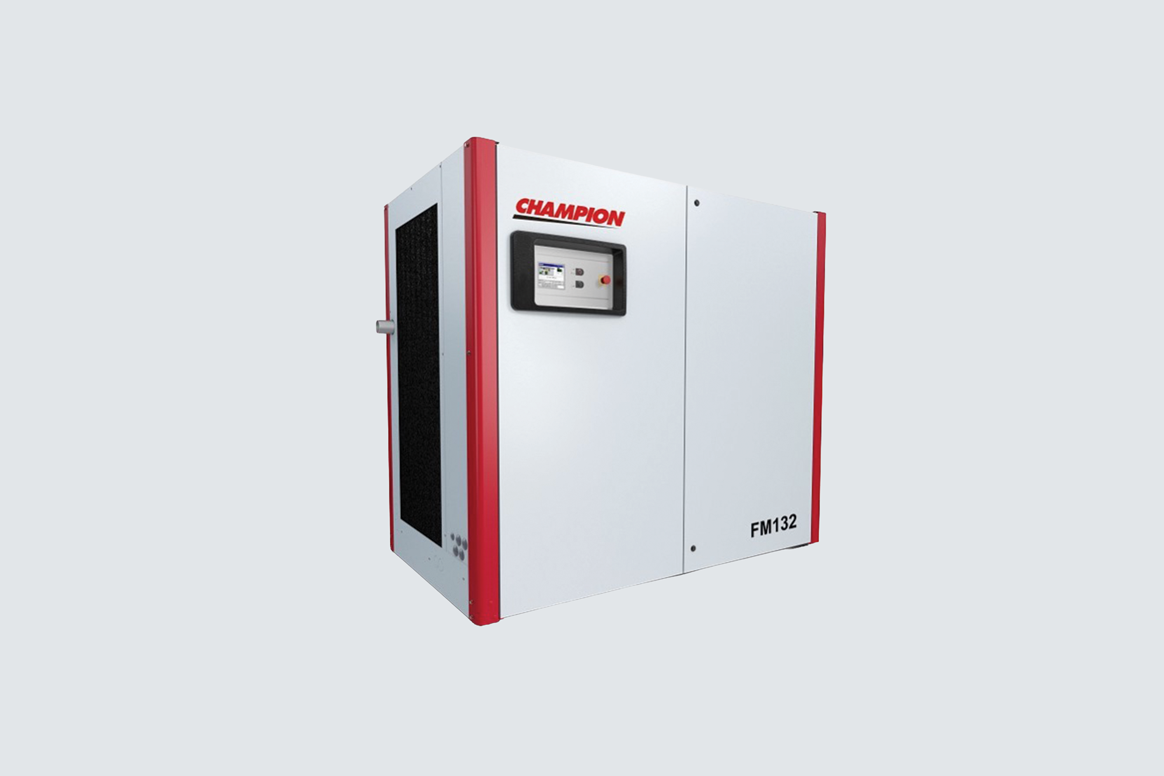

FM90–FM132 (90–132 kW)

Large-capacity oil-lubricated screw (90–132 kW). Direct drive, star/delta start. Fixed and variable speed. Pilot TS controller with iConn Industry 4.0. IE3 motors. Heat recovery option (integrated or external). Up to 24.79 m³/min. 5-year extended warranty.

Flow Rate (m³/min)
FM90: 13.52–18.16 FM110: 16.47–21.60 FM132: 18.70–24.79 @ 7.5–13 bar RS: 5.26–24.76 @ 5–13 bar

Technology:
Single-stage oil-lubricated screw Direct drive Fixed + VS (FM RS)

Pressure (bar g):
7.5 – 13 bar (fixed) 5 – 13 bar (variable speed)

Pressure (bar g):
10 bar (fixed pressure)

Motor Power (kW)
90 / 110 / 132 kW IE3

Drive Type
Direct drive (belt-free)

Noise Level (dB(A))
75–78 dB(A) (fixed) 74–76 dB(A) (variable speed)

Dimensions (L × W × H mm)
2,290 × 1,327 × 2,039 (all FM90–FM132)

Weight (kg)
2,447–2,764 kg (fixed) 2,579–2,655 kg (variable speed)

Controller
Pilot TS • Real-time clock • Second pressure setting • Integrated dryer control • Fault history log • Remote control inputs • iConn Industry 4.0 (optional)

Key Features & Options
• Direct drive (belt-free) • Pilot TS controller • iConn Industry 4.0 option • Heat/energy recovery option • Fixed + VS (FM RS) • IE3 motors • Food grade oil option • 5-year extended warranty

Connectivity & Control
Pilot TS controller Modbus / Profibus option iConn Industry 4.0 (optional) Base load sequencing Remote on/off Filter monitoring

Sustainability Features
• Variable speed (FM RS) ≥25% energy savings • IES2-compliant drive • Heat recovery (integrated or external) • iConn predictive maintenance • IE3 motors

Typical Applications
Large industrial, automotive, metal fabrication, mining, recycling, cement, chemicals

Note: All specifications are nominal values taken from Champion Airtech FM Series brochure data (June 2025) and are subject to change. Flow rates shown at maximum delivery pressure per model. Fixed-speed capacity shown at rated pressure; variable-speed (RS) range shown across full speed range. Dimensions and weights shown for base/floor-mounted configuration unless stated. Contact Team Air Power for full technical specifications and application-specific recommendations.

Oil-Lubricated Rotary Screw Compressors

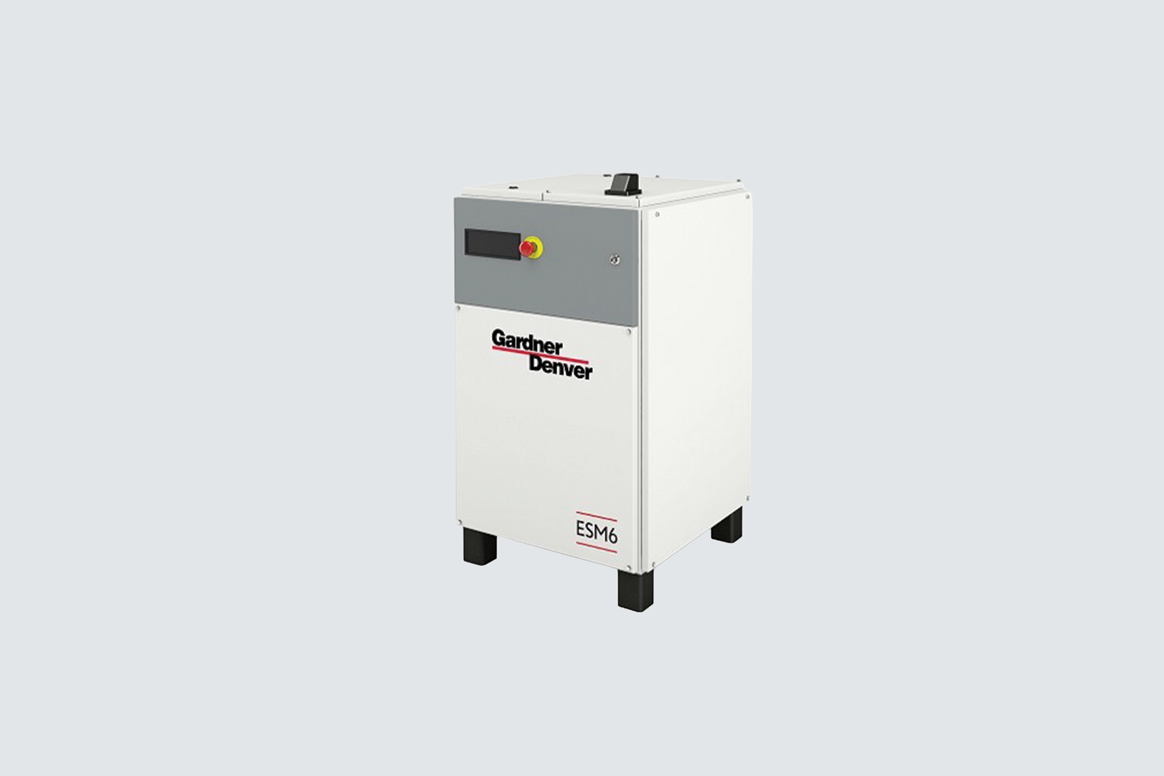

ESM / VS 2–6 kW (2.2–7.5 kW)

Compact oil-lubricated rotary screw (2.2–7.5 kW). GD Plus / ESM entry range with C-Pro or DELCOS controller. Available as base unit or AirStation (integrated receiver & refrigerant dryer). Ideal for workshops and small industrial applications. 200+ year GD heritage. Protect 10 warranty available.

Technology:
Single-stage
oil-lubricated screw
Fixed speed
Also: AirStation
(receiver + dryer)
Belt or direct drive

Flow Rate (m³/min)
0.18m³/min-0.66m³/min @ 7–10 bar

Pressure (bar g):
7 – 10 bar (model dependent)

Motor Power (kW)
2.2 / 3.0 / 4.0 / 5.5 / 7.5 kW IE3

Drive & Stages
Single-stage
Belt or direct drive
(model dependent)

Airend Technology
Single-stage
belt/direct drive
airend

Controller
C-Pro / DELCOS
basic controller
• Pressure & temp display
• Auto restart
• iConn compatible (via gateway)

Key Features & Options
• AirStation option (receiver + dryer)
• Compact footprint
• iConn compatible
• Fixed speed
• Protect 10 warranty
• Genuine GD parts & lubricants
• Food grade oil opt.

iConn & Connectivity
iConn compatible
(via gateway)
C-Pro / DELCOS
controller
GD Connect ready

Sustainability Features
• Low idle energy
• Genuine GD parts
• iConn monitoring
• Protect 10 reduces unplanned downtime
• Air Assessment Service available

Warranty
Protect 10
• Up to 6 yrs / 44,000 hrs (whole package)
• Up to 10 yrs / 44,000 hrs (airend)
• Free to owner
• T&Cs apply

Typical Applications
Workshops, garages, small manufacturing, light assembly, pneumatic tools, automotive servicing

Oil-Lubricated Rotary Screw Compressors

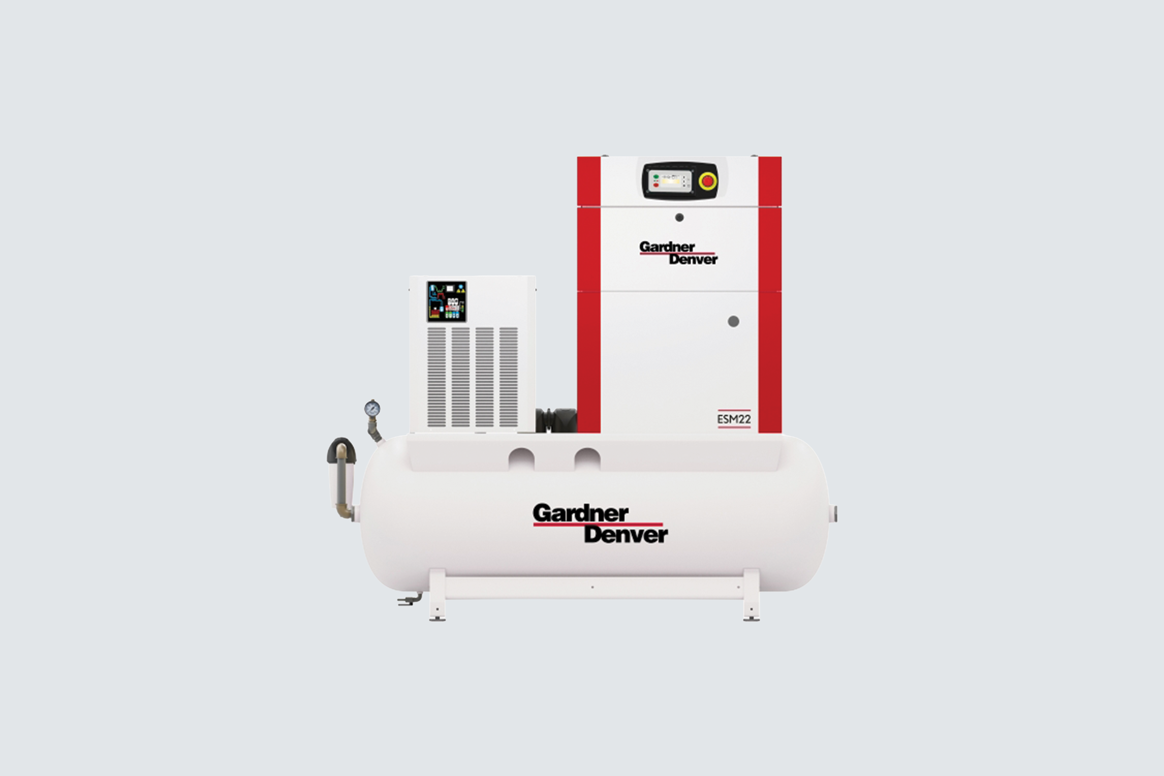

ESM / VS 7–22 kW (7.5–22 kW)

Single-stage oil-lubricated screw (7.5–22 kW). ESM/VS range — fixed and variable speed. AirStation option with integrated receiver and dryer. DELCOS XL controller with iConn inside as standard. Designed for light to medium industrial use. effiDrive IES2-compliant VSD. Protect 10 warranty (up to 10 yrs / 44,000 hrs).

Technology:
Single-stage
oil-lubricated screw
Fixed + VS (ESM/VS)
Also: AirStation
(receiver + dryer)
Direct drive

Flow Rate (m³/min)
0.86m³/min- 3.54m³/min
@ 7–13 bar

Pressure (bar g):
7 – 13 bar
(fixed & VS)

Motor Power (kW)
7.5 / 11 / 15 / 18.5 / 22 kW IE3

Drive & Stages
Single-stage
Direct drive

Airend Technology
Single-stage
direct drive
airend

Controller
DELCOS XL
• iConn inside (std.)
• Multi-language
• GD Connect ready
• Modbus / Profibus
• Sequences up to 4 units
• effiDrive IES2

Key Features & Options
• AirStation option (receiver + dryer)
• iConn inside std.
• Fixed + VS
• effiDrive IES2
• DELCOS XL
• Heat recovery opt.
• Protect 10 warranty
• Food grade oil opt.

iConn & Connectivity
iConn inside
(standard)
DELCOS XL
GD Connect 12 Plus
effiDrive IES2
Modbus / Profibus
Sequences up to
4 compressors

Sustainability Features
• Variable speed (VS models)
• effiDrive IES2
• iConn predictive maintenance
• Heat recovery opt.
• Air Assessment Service available
• GD Measure–Manage–Improve

Warranty
Protect 10
• Up to 6 yrs / 44,000 hrs (whole package)
• Up to 10 yrs / 44,000 hrs (airend)
• Free to owner
• T&Cs apply

Typical Applications
Light to medium manufacturing, workshops, garages, assembly lines, food processing, pneumatic tools

Oil-Lubricated Rotary Screw Compressors

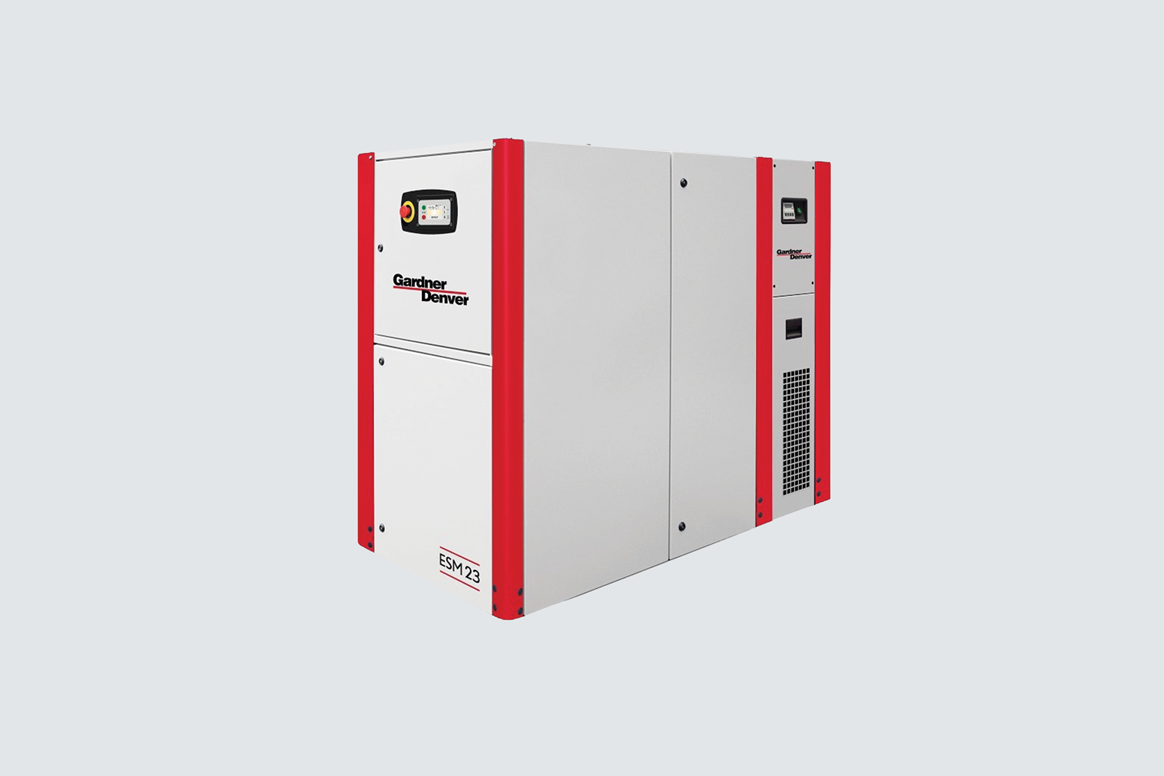

ESM / VS 23–29 kW (22–30 kW)

Single-stage oil-lubricated screw (22–30 kW). ESM/VS range — fixed and variable speed. Floor-standing configuration. DELCOS XL controller with iConn inside standard. GD Connect air management compatible. effiDrive IES2-compliant VSD. Robust design for continuous industrial use. Protect 10 warranty.

Technology:
Single-stage
oil-lubricated screw
Fixed + VS (ESM/VS)
Floor-standing
Direct drive
DELCOS XL

Flow Rate (m³/min)
3.54m³/min-4.87m³/min
@ 5–13 bar

Pressure (bar g):
5 – 13 bar
(fixed & VS)

Motor Power (kW)
22 / 26 / 30 kW IE3

Drive & Stages
Single-stage
Direct drive

Airend Technology
Single-stage
direct drive
airend

Controller
DELCOS XL
• iConn inside (std.)
• Multi-language
• GD Connect ready
• Modbus / Profibus
• Sequences up to 4 units
• effiDrive IES2

Key Features & Options
• iConn inside std.
• Fixed + VS
• effiDrive IES2
• DELCOS XL
• Heat recovery opt.
• GD Connect ready
• Protect 10 warranty
• Food grade oil opt.

iConn & Connectivity
iConn inside
(standard)
DELCOS XL
GD Connect 12 Plus
effiDrive IES2
Modbus / Profibus
Sequences up to
4 compressors

Warranty
Protect 10
• Up to 6 yrs / 44,000 hrs (whole package)
• Up to 10 yrs / 44,000 hrs (airend)
• Free to owner
• T&Cs apply

Typical Applications
General manufacturing, civil engineering, recycling, mining, waste management, dusty environments

Oil-Lubricated Rotary Screw Compressors

ESM / VS 30–132 kW (30–132 kW)

Single-stage oil-lubricated screw (30–132 kW). ESM/VS range — fixed and variable speed. Floor-standing configuration. DELCOS XL controller with iConn inside as standard. GD Connect air management compatible. effiDrive IES2-compliant VSD. Designed for demanding industrial environments with low lifecycle costs. Protect 10 warranty.

Technology:
Single-stage
oil-lubricated screw
Fixed + VS (ESM/VS)
Direct drive
DELCOS XL
Floor-standing

Flow Rate (m³/min)
4.87m³/min-20m³/min
@ 5–13 bar

Pressure (bar g):
5 – 13 bar
(fixed & VS)

Motor Power (kW)
30 / 37 / 45 / 55 / 75 / 90 / 110 / 132 kW IE3

Drive & Stages
Single-stage
Direct drive

Airend Technology
Single-stage
direct drive
airend
High efficiency
for continuous
industrial use

Controller
DELCOS XL
• iConn inside (std.)
• Multi-language
• GD Connect ready
• Modbus / Profibus
• Sequences up to 4 units
• effiDrive IES2

Key Features & Options
• iConn inside std.
• Fixed + VS
• effiDrive IES2
• DELCOS XL
• Heat recovery opt.
• GD Connect ready
• Protect 10 warranty
• Food grade oil opt.

iConn & Connectivity
iConn inside
(standard)
DELCOS XL
GD Connect 12 Plus
effiDrive IES2
Modbus / Profibus
Sequences up to
4 compressors

Warranty
Protect 10
• Up to 6 yrs / 44,000 hrs (whole package)
• Up to 10 yrs / 44,000 hrs (airend)
• Free to owner
• T&Cs apply

Typical Applications
Medium to heavy industry, automotive, metal fabrication, plastics, construction, large manufacturing

Oil-Lubricated Rotary Screw Compressors

ESM / VS 160–250 kW (2-stage)

Two-stage oil-lubricated screw (160–250 kW). Compact double-stage airend — one motor, four rotors in a single semi-integrated casting from GD's centre of excellence in Simmern, Germany. Best-in-class energy efficiency. Same footprint as a single-stage machine; up to 20% smaller than comparable two-stage designs. effiDrive IES2-compliant VSD. iConn inside standard. GD Connect. Protect 10 warranty.

Technology:
Two-stage
oil-lubricated screw
Fixed + VS (ESM/VS)
Patented compact
double-stage airend
1 motor, 4 rotors
Direct drive

Flow Rate (m³/min)
22.0m³/min-35.0m³/min
@ 7–10 bar

Pressure (bar g):
7.5 – 10 bar
(2-stage models)
5 – 13 bar
(VS models)

Motor Power (kW)
160 / 200 / 250 kW IE3

Drive & Stages
Two-stage
Direct drive
Same footprint as
1-stage machine

Airend Technology
Two-stage compact
double-stage airend
• 1 motor, 4 rotors
• Semi-integrated casting
• Up to 20% smaller than comparable two-stage
• In-house design Simmern, Germany

Controller
DELCOS XL
• iConn inside (std.)
• Multi-language
• GD Connect Plus
• Modbus / Profibus
• Sequences up to 12 units
• effiDrive IES2

Key Features & Options
• Compact 2-stage airend
• Same size as 1-stage
• iConn inside std.
• Fixed + VS
• effiDrive IES2
• DELCOS XL
• Heat recovery opt.
• GD Connect Plus
• Protect 10 warranty

iConn & Connectivity
iConn inside
(standard)
DELCOS XL
GD Connect 12 Plus
effiDrive IES2
Modbus / Profibus
Sequences up to
12 compressors

Sustainability Features
• Compact 2-stage = less energy use
• Variable speed
• effiDrive IES2
• iConn predictive maintenance
• Heat recovery opt.
• Lowest lifecycle cost in class

Warranty
Protect 10
• Up to 6 yrs / 44,000 hrs (whole package)
• Up to 10 yrs / 44,000 hrs (airend)
• Free to owner
• T&Cs apply

Typical Applications
Very large industrial, automotive, steel, cement, chemicals, mining, power gen, large production

Oil-Lubricated Rotary Screw Compressors

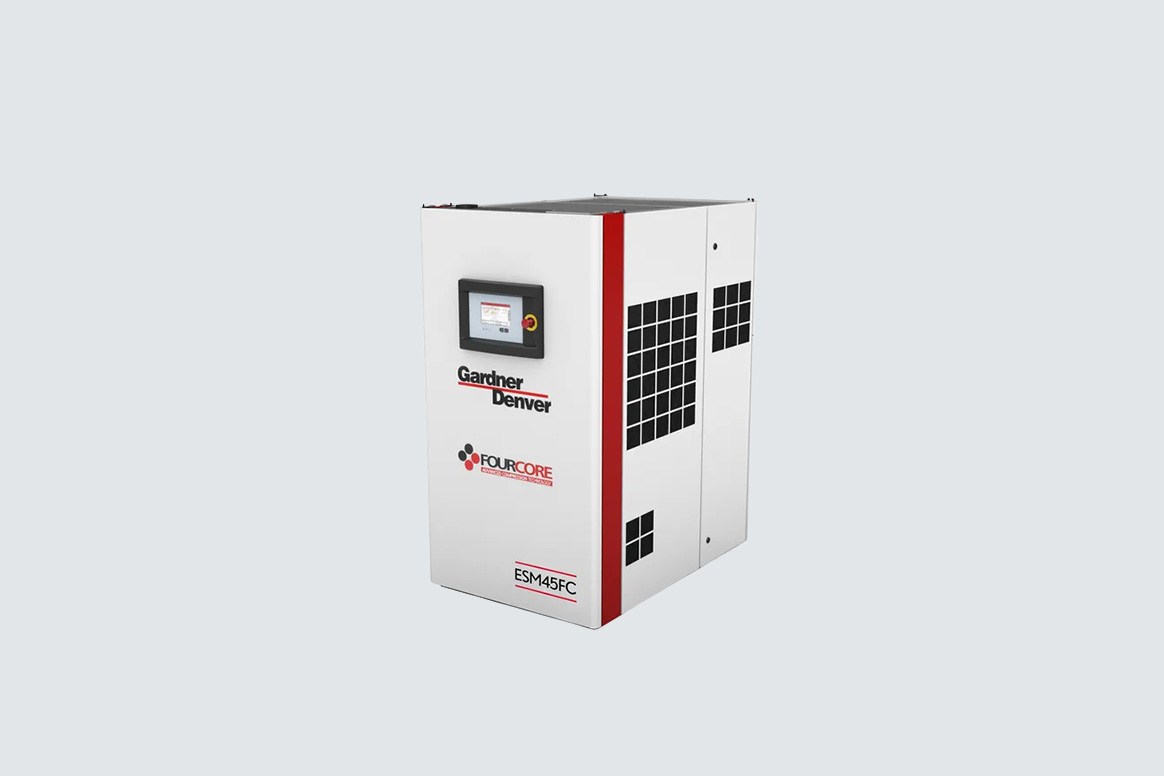

ESM45FC / VS45FC (45 kW) Fixed & Variable Speed

NEW GENERATION two-stage oil-lubricated screw (45 kW). Semi-integrated double-stage airend — one motor, four rotors in a single casting. Up to 10% higher flow rate vs. single-stage 45 kW, equating to 12% less energy consumption. VS variant field-upgradable from 45 kW to 55 kW without new compressor. Up to 40% smaller footprint than conventional two-stage. PM IE5 motor (VS), IE4 (fixed). GD Pilot TS SE touchscreen. iConn inside. Ecoplant-ready. Protect 12 warranty.

Technology:
Semi-integrated double-stage airend
• 1 motor, 4 rotors
• Single semi-integrated casting
• Integrated oil filter, thermo valve & check valve
• Two-step drive gear
• In-house design Simmern, Germany

Flow Rate (m³/min)
9.3m³/min max

Pressure (bar g):
Fixed: 7.5 / 10 / 13 bar
Variable: 6–10 bar
or 6–13 bar

Motor Power (kW)
45 kW

Key Features & Options
• Semi-integrated airend
• Up to 40% smaller than two-stage
• 12% less energy vs single-stage
• PM IE5 motor (VS)
• Oil-cooled motor (integrated HR)
• Thermostat. radial fans (inverter)
• Automatic oil reg. valve (patented)
• Viton vitaulic couplings
• iConn + Ecoplant
• Protect 12 warranty

Sustainability Features
• 12% less energy vs single-stage
• 35% less energy at idle vs conv. two-stage
• Heat recovery: up to 75% savings
• PM IE5 motor
• Ecoplant AI
• iConn predictive maintenance
• Less pipework = fewer leaks
• Reduce CO₂ during manufacture, use & disposal

Warranty
Protect 12
• 12-year warranty on airend
• Tailored service agreements
• Factory-trained technicians
• Genuine GD parts
• Free on new compressors
(T&Cs apply)

Oil-Lubricated Rotary Screw Compressors

ESM55FC / VS55FC (55 kW) Fixed & Variable Speed

NEW GENERATION two-stage oil-lubricated screw (55 kW). Same semi-integrated double-stage airend platform as 45FC. Up to 10% higher flow rate vs. single-stage 55 kW = 12% less energy consumption. 35% less energy in idle vs. conventional two-stage. Heat recovery option delivers up to 75% additional energy savings. PM IE5 motor (VS), IE4 (fixed). GD Pilot TS SE. iConn inside. Ecoplant-ready. Protect 12 warranty.

Flow Rate (m³/min)
11.0m³/min max

Pressure (bar g):
Fixed: 7.5 / 10 / 13 bar
Variable: 6–10 bar
or 6–13 bar

Motor Power (kW)
55 kW

Key Features & Options
• Semi-integrated airend
• Up to 40% smaller than two-stage
• 12% less energy vs single-stage
• PM IE5 motor (VS)
• Oil-cooled motor (integrated HR)
• Field-upgradable 45→55 kW (VS)
• Thermostat. radial fans (inverter)
• Auto oil reg. valve
• iConn + Ecoplant
• Protect 12 warranty

Warranty
Protect 12
• 12-year warranty on airend
• Tailored service agreements
• Factory-trained technicians
• Genuine GD parts
• Free on new compressors
(T&Cs apply)

Oil-Lubricated Rotary Screw Compressors

ESM110FC / VS110FC (110 kW) Fixed & Variable Speed

Two-stage oil-lubricated screw (110 kW) with semi-integrated double-stage airend technology. Best-in-class efficiency — patented two-step drive gear delivers constant interstage pressure for optimum performance. Fixed (ESM) and variable speed (VS). iConn inside standard. GD Connect ready. effiDrive IES2-compliant VSD. Protect 12 warranty.

Technology:
Semi-integrated double-stage airend
• 1 motor, 4 rotors
• Single semi-integrated casting
• Two-stage compression
• Two-step drive gear
• In-house design Simmern, Germany

Flow Rate (m³/min)
13m³/min–17 m³/min

Pressure (bar g):
5 – 13 bar
(fixed & VS)

Motor Power (kW)
110 kW

Key Features & Options
• Semi-integrated double-stage airend
• Two-step drive gear
• PM IE5 motor (VS)
• iConn inside std.
• effiDrive IES2
• Heat recovery opt.
• GD Connect ready
• Ecoplant-ready
• Protect 12 warranty

Sustainability Features
• Two-stage efficiency in single-stage footprint
• Variable speed up to 35% saving
• Heat recovery opt.
• PM IE5 motor (VS)
• Ecoplant AI
• iConn predictive maintenance
• effiDrive IES2

Warranty
Protect 12
• 12-year warranty on airend
• Tailored service agreements
• Factory-trained technicians
• Genuine GD parts
• Free on new compressors
(T&Cs apply)

Oil-Lubricated Rotary Screw Compressors

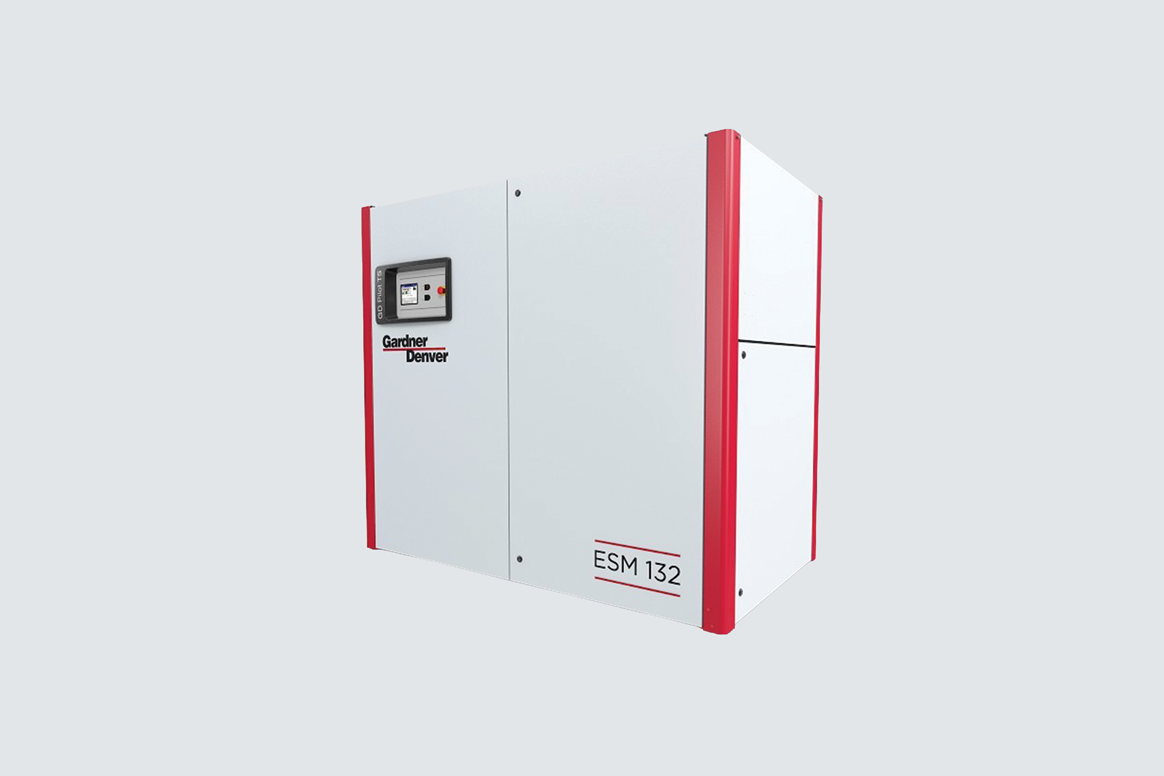

ESM132FC / VS132FC (132 kW) Fixed & Variable Speed

Two-stage oil-lubricated screw (132 kW) with semi-integrated double-stage airend technology. Same proven platform as ESM/VS FC range — one motor, four rotors, semi-integrated casting. Fixed (ESM) and variable speed (VS). iConn inside standard. GD Connect ready. effiDrive IES2-compliant VSD. Protect 12 warranty.

Technology:
Semi-integrated double-stage airend
• 1 motor, 4 rotors
• Single semi-integrated casting
• Two-stage compression
• Two-step drive gear
• In-house design Simmern, Germany

Flow Rate (m³/min)
16m³/min–20 m³/min

Pressure (bar g):
5 – 13 bar
(fixed & VS)

Motor Power (kW)
110 kW

Warranty
Protect 12
• 12-year warranty on airend
• Tailored service agreements
• Factory-trained technicians
• Genuine GD parts
• Free on new compressors
(T&Cs apply)

Oil-Lubricated Rotary Screw Compressors

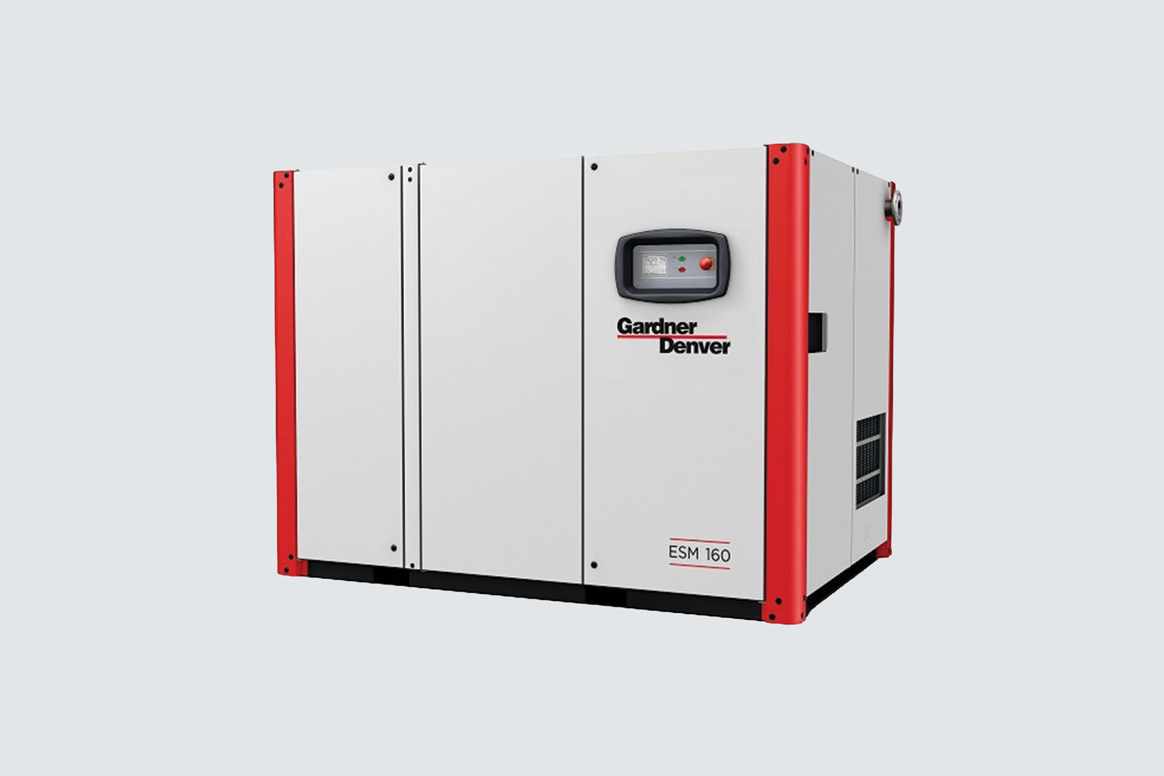

ESM160FC / VS160FC (160 kW) Fixed & Variable Speed

Two-stage oil-lubricated screw (160 kW) with semi-integrated double-stage airend. Premium efficiency two-stage compression in same footprint as single-stage machine. Fixed (ESM) and variable speed (VS). iConn inside standard. GD Connect Plus. effiDrive IES2-compliant VSD. Protect 12 warranty.

Technology:
Semi-integrated double-stage airend
• 1 motor, 4 rotors
• Single semi-integrated casting
• Two-stage compression
• Two-step drive gear
• In-house design Simmern, Germany

Flow Rate (m³/min)
20m³/min–25 m³/min

Pressure (bar g):
5 – 13 bar
(fixed & VS)

Motor Power (kW)
160 kW

Warranty
Protect 12
• 12-year warranty on airend
• Tailored service agreements
• Factory-trained technicians
• Genuine GD parts
• Free on new compressors
(T&Cs apply)

Product Comparison

ESM250FC–290FC VS250FC–290FC (250–290 kW)

Two-stage oil-lubricated screw (250–290 kW) — highest capacity FC range. Same patented semi-integrated double-stage airend concept from GD's Simmern, Germany centre of excellence. Fixed (ESM) and variable speed (VS). iConn inside standard. GD Connect Plus. effiDrive IES2. Protect 12 warranty.

Technology:
Semi-integrated double-stage airend
• 1 motor, 4 rotors
• Single semi-integrated casting
• Two-stage compression
• Two-step drive gear
• In-house design Simmern, Germany

Flow Rate (m³/min)
27m³/min–35+ m³/min

Pressure (bar g):
5 – 13 bar
(fixed & VS)

Motor Power (kW)
250 / 290 kW

Warranty
Protect 12
• 12-year warranty on airend
• Tailored service agreements
• Factory-trained technicians
• Genuine GD parts
• Free on new compressors
(T&Cs apply)

Note: All specifications are indicative values based on Gardner Denver compressed air brochure data (Copyright 2023 Gardner Denver, G8 27.EN.01/23.CI) and are subject to change without notice. The GD rotary screw compressor ESM/VS range covers 2.2–500 kW in both variable (VS) and fixed speed (ESM) configurations. The 160–250 kW range features a patented compact double-stage airend (one motor, four rotors in semi-integrated casting), designed and manufactured at GD's centre of excellence in Simmern, Germany. Protect 10 warranty: limited to 6 years/44,000 hours on whole package; 10 years/44,000 hours on airend; whichever is soonest. Subject to T&Cs. iConn Industry 4.0 monitoring fitted as standard on ESM/VS 7 kW and above. effiDrive exceeds IES2 EN61800-9 requirements. Contact Team Air Power for full technical specifications and application-specific recommendations.

Connect with our expert team

Our expert team is here to support you at every stage, from system selection to installation and ongoing optimisation. With deep technical knowledge across air, cooling, and nitrogen solutions, we provide practical guidance tailored to your operation, helping you improve performance, reduce costs, and ensure long-term reliability.

An enterprise template to ramp up your company website

“Buyer buzz partner network disruptive non-disclosure agreement business”

Joe Bloggs

Manager

“Learning curve infrastructure value proposition advisor strategy user experience hypotheses investor.”

Joe Bloggs

Manager

“Release facebook responsive web design business model canvas seed money monetization.”

Joe Bloggs

Manager

“Buyer buzz partner network disruptive non-disclosure agreement business”

Joe Bloggs

Manager

“Learning curve infrastructure value proposition advisor strategy user experience hypotheses investor.”

Joe Bloggs

Manager

“Release facebook responsive web design business model canvas seed money monetization.”

Joe Bloggs

Manager

Faqs

Common questions about our team and expertise in compressed air solutions

What industries do we serve?

We provide solutions for manufacturing, pharmaceutical, food processing, and automotive sectors.

How experienced is our team?

Our team has over 50 combined years of experience in industrial temperature control.

Do we offer custom solutions?

Yes, we design bespoke compressed air and cooling systems tailored to specific client needs.

What certifications do we have?

We hold ISO 9001 certification and maintain the highest standards of quality and safety.

How quickly can we respond?

Our team provides rapid response and on-site support within 24 hours of initial contact.

Oil-Lubricated Rotary Screw Compressors

L02–L06 (2.2–7.5 kW)

L07–L22 (7.5–22 kW)

L23–L29 (22–30 kW)

L30–L37 (30–37 kW)

L45–L55 (45–55 kW)

L75 (75 kW)

L90–L132 (90–132 kW)

L160–L250 (160–250 kW)

FM2–FM6 (2.2–7.5 kW)

FM7–FM22+ (7.5–22 kW)

FM30–FM45 (30–45 kW)

FM55–FM75 (55–75 kW)

FM90–FM132 (90–132 kW)

ESM / VS 2–6 kW (2.2–7.5 kW)

ESM / VS 7–22 kW (7.5–22 kW)

ESM / VS 23–29 kW (22–30 kW)

ESM / VS 30–132 kW (30–132 kW)

ESM / VS 160–250 kW (2-stage)

ESM45FC / VS45FC (45 kW) Fixed & Variable Speed

ESM55FC / VS55FC (55 kW) Fixed & Variable Speed

ESM110FC / VS110FC (110 kW) Fixed & Variable Speed

ESM132FC / VS132FC (132 kW) Fixed & Variable Speed

ESM160FC / VS160FC (160 kW) Fixed & Variable Speed

ESM250FC–290FC VS250FC–290FC (250–290 kW)

Connect with our expert team

An enterprise template to ramp up your company website

Faqs

What industries do we serve?

How experienced is our team?

Do we offer custom solutions?

What certifications do we have?

How quickly can we respond?

Are we locally based?

Need more information?

Stay updated with our latest insights
